6" AMOLED 2160x1080, 1500nit, Qualcomm Dragonwing Q-6690, 12 GB LPDDR RAM/256 GB UFS 3.1 Flash, Bluetooth, WLAN Wi-Fi 7, AC670, Android
Description

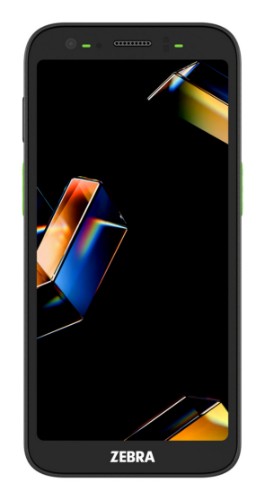

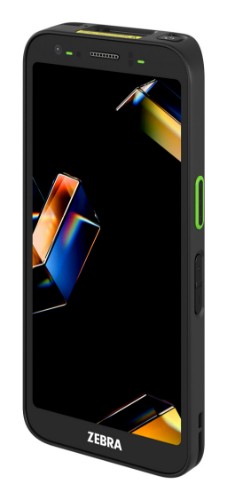

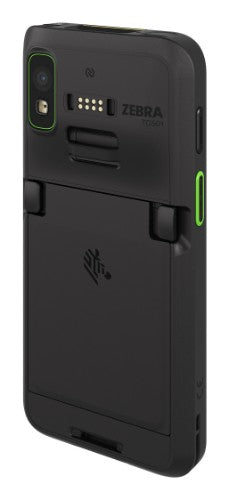

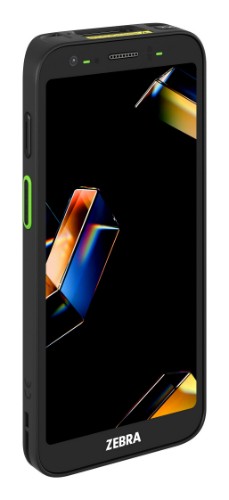

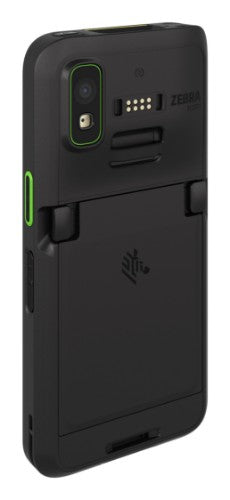

TC501 Mobile ComputerRugged mobile computing reimagined for the AI-powered frontline
Empowering your frontline with AI propels productivity, efficiency, customer satisfaction and profitability to exceptional heights. But running AI apps takes the right device. It takes the power to enable ultra-responsive apps. It takes the ability to capture a wealth of data to streamline and automate workflows, and empower workers with a new level of business intelligence—plus the durability to handle whatever the workday brings. Get it all with the TC501. A groundbreaking new processor is the new heart of the TC501, built specifically to enable high performance AI on-device. Zebra’s most powerful platform offers the most memory, the most advanced display technology, the fastest wireless networks and the most data capture options in any TC5 device—all in the most rugged TC5 device we’ve built to date. And develop AI apps in days instead of months with Zebra’s Frontline AI Suite. Empower your workers to work smarter every day with the TC501—the mobile computer built for the AI-powered generation.
Specifications
| Display |
|---|
| Touchscreen type |
Optical |
| Touch technology |
Multi-touch |
| Display resolution |
2160 x 1080 pixels |
| Display diagonal |
15.2 cm (6") |
| Display |
AMOLED |
| Touchscreen |
Yes |
| Display brightness |
1500 cd/m² |
| Display glass type |
Corning Glass |
| Memory |
|---|
| Internal memory |
12 GB |
| Maximum memory card size |
2 TB |
| Compatible memory cards |
MicroSD (TransFlash) |
| Flash memory |
256 GB |
| Flash memory type |
UFS |
| Processor |
|---|
| Processor frequency |
2.9 GHz |
| Processor family |
Qualcomm Dragonwing |
| Processor manufacturer |
Qualcomm |
| Number of cores |
8 |
| Network |
|---|
| Near Field Communication (NFC) |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Data network |
5G, 4G |
| Bluetooth version |
6.0 |
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| 4G standard |
LTE |
| GPS Performance |
|---|
| GPS (satellite) |
Yes |
| GLONASS |
Yes |
| BeiDou |
Yes |
| Galileo |
Yes |
| Camera |
|---|
| Built-in camera |
Yes |
| Built-in flash |
Yes |
| Auto focus |
Yes |
| Rear camera resolution (numeric) |
50 MP |
| Front camera resolution (numeric) |
8 MP |
| Audio |
|---|
| Built-in microphone |
Yes |
| Speakers |
stereo |
| Number of microphones |
2 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Performance |
|---|
| Product colour |
Black |
| RFID reader |
Yes |
| Barcode reader |
Yes |
| Scanner type |
1D/2D |
| USB On-The-Go support |
Yes |
| Sensors |
|---|
| Ambient light sensor |
Yes |
| Accelerometer |
Yes |
| Proximity sensor |
Yes |
| Gyroscope |
Yes |
| Software |
|---|
| Operating system installed |
Android |
| Power |
|---|
| Battery capacity |
5000 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Weight & dimensions |
|---|
| Weight |
284 g |
| Width |
77.9 mm |
| Depth |
15.5 mm |
| Height |
165 mm |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Data transmission |
|---|
| Data network |
5G, 4G |
| Bluetooth version |
6.0 |
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Technical details |
|---|
| Ambient light sensor |
Yes |
| Accelerometer |
Yes |
| Product colour |
Black |
| RFID reader |
Yes |
| Barcode reader |
Yes |
| Scanner type |
1D/2D |
| USB On-The-Go support |
Yes |
