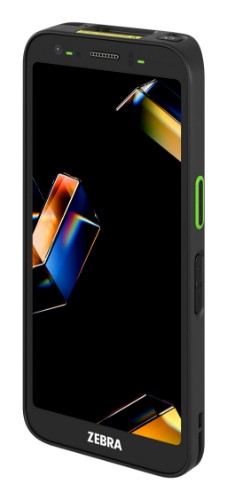

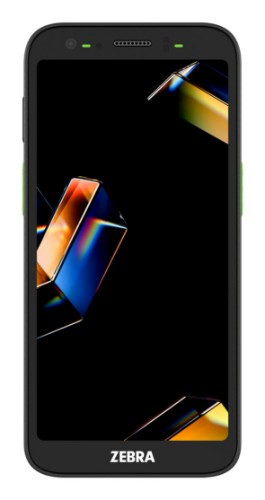

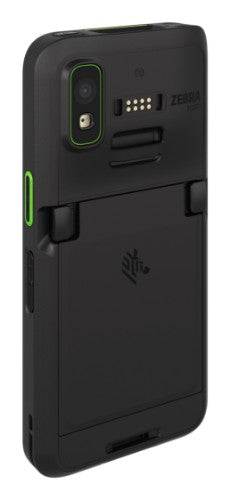

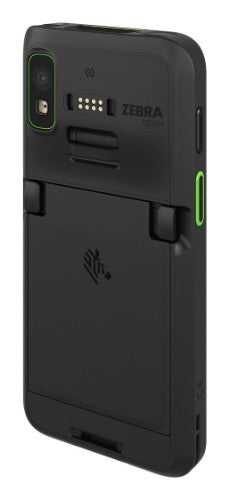

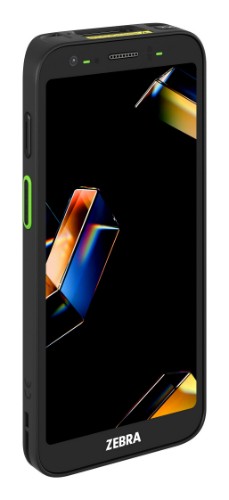

Zebra TC501 handheld mobile computer 15.2 cm (6") 2160 x 1080 pixels Touchscreen 284 g Black

6" AMOLED 2160x1080, 1500nit, Qualcomm Dragonwing Q-6690, 8 GB LPDDR RAM/128 GB UFS 3.1 Flash, Bluetooth, WLAN Wi-Fi 7, AC670, Android

Description

TC501 Mobile Computer
Rugged mobile computing reimagined for the AI-powered frontline

Empowering your frontline with AI propels productivity, efficiency, customer satisfaction and profitability to exceptional heights. But running AI apps takes the right device. It takes the power to enable ultra-responsive apps. It takes the ability to capture a wealth of data to streamline and automate workflows, and empower workers with a new level of business intelligence—plus the durability to handle whatever the workday brings. Get it all with the TC501. A groundbreaking new processor is the new heart of the TC501, built specifically to enable high performance AI on-device. Zebra’s most powerful platform offers the most memory, the most advanced display technology, the fastest wireless networks and the most data capture options in any TC5 device—all in the most rugged TC5 device we’ve built to date. And develop AI apps in days instead of months with Zebra’s Frontline AI Suite. Empower your workers to work smarter every day with the TC501—the mobile computer built for the AI-powered generation.

Specifications

Display
Touchscreen type	Optical
Touch technology	Multi-touch
Display resolution	2160 x 1080 pixels
Display diagonal	15.2 cm (6")
Display	AMOLED
Touchscreen	Yes
Display brightness	1500 cd/m²
Display glass type	Corning Glass
Memory
Internal memory	8 GB
Maximum memory card size	2 TB
Compatible memory cards	MicroSD (TransFlash)
Flash memory	128 GB
Flash memory type	UFS
Processor
Processor frequency	2.9 GHz
Processor family	Qualcomm Dragonwing
Processor manufacturer	Qualcomm
Number of cores	8
Network
Near Field Communication (NFC)	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	6.0
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Camera
Built-in camera	Yes
Built-in flash	Yes
Auto focus	Yes
Rear camera resolution (numeric)	50 MP
Front camera resolution (numeric)	8 MP
Audio
Built-in microphone	Yes
Speakers	stereo
Number of microphones	2
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Performance
Product colour	Black
RFID reader	Yes
Barcode reader	Yes
Scanner type	1D/2D
USB On-The-Go support	Yes
Sensors
Ambient light sensor	Yes
Accelerometer	Yes
Proximity sensor	Yes
Gyroscope	Yes
Software
Operating system installed	Android
Power
Battery capacity	5000 mAh
Battery technology	Lithium-Ion (Li-Ion)
Weight & dimensions
Weight	284 g
Width	77.9 mm
Depth	15.5 mm
Height	165 mm
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 50 °C
Wireless LAN features
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Data transmission
Bluetooth version	6.0
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes
Technical details
Ambient light sensor	Yes
Accelerometer	Yes
Product colour	Black
RFID reader	Yes
Barcode reader	Yes
Scanner type	1D/2D
USB On-The-Go support	Yes
