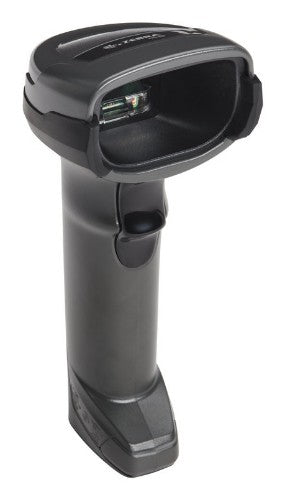

Zebra DS4678-SR Handheld bar code reader 1D/2D LED Black

DS4678-SR Black Presentation Cradle USB KIT: DS4678-SR00007ZZWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-PC100F4WW Cradle

Description

The versatile scanner that does more for your retail operations
Today’s shoppers don’t want to wait in long lines at the checkout or returns desk. The DS4600 Series offers the versatility and scanning performance you need to keep transactions fast and lanes flowing smoothly throughout the whole store. This feature-rich family helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. There is a DS4600 Series model for every need in your store. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department—the DS4600 Series can capture it all. The increased efficiency shrinks lines and keeps customers coming back again and again. And our unique DataCapture DNA and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners. The DS4600 Series—more data capture versatility, more range and more innovation.

Specifications

Scanning
Type	Handheld bar code reader
Sensor type	LED
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength	617 nm
Scanner type	1D/2D
Optical sensor resolution (W x H)	1280 x 800 pixels
Horizontal field of view	36.1°
Vertical field of view	22.6°
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	USB
Performance
Product colour	Black
International Protection (IP) code	IP52
Design
Product colour	Black
Type	Handheld bar code reader
International Protection (IP) code	IP52
Power
Power source type	USB
Weight & dimensions
Width	67 mm
Depth	98 mm
Height	165 mm
Weight	161.9 g
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
