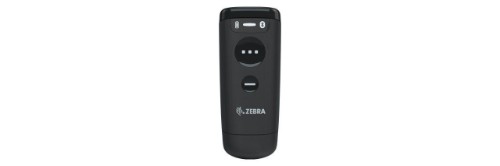

Zebra CS60 Handheld bar code reader 1D/2D LED Black

Cordless CS60 Companion Scanner, Circular 525nm true green LED, 1280 x 960 pixels, Bluetooth 5.0 BLE

Description

ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN
The ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.

ADAPTS TO ANY WORKFLOW
As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.

CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.

EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.

Specifications

Scanning
Type	Handheld bar code reader
Sensor type	LED
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength	525 nm
Scanner type	1D/2D
Tilt reading angle	-60 - 60°
Pitch reading angle	-60 - 60°
Yaw reading angle	0 - 360°
Light levels (direct sunlight)	0 - 108000 lx
Optical sensor resolution (W x H)	1280 x 960 pixels
Ports & interfaces
Connectivity technology	Wireless
Wireless range	100 m
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
Standard interfaces	Bluetooth, USB
Performance
Product colour	Black
International Protection (IP) code	IP65
LED indicators	Yes
Light levels (direct sunlight)	0 - 108000 lx
Design
Product colour	Black
Type	Handheld bar code reader
International Protection (IP) code	IP65
LED indicators	Yes
Power
Power source type	AC, Battery, DC, USB
Battery technology	Lithium Polymer (LiPo)
Battery type	Built-in battery
Battery capacity	735 mAh
Number of reads per charge	13000
Battery life	18 h
Charging time	6 h
Power consumption	400 mA
Weight & dimensions
Width	46 mm
Depth	109 mm
Height	23 mm
Weight	83 g
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Light levels (direct sunlight)	0 - 108000 lx
Technical details
Harmonized System (HS) code	84716070
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84716070
