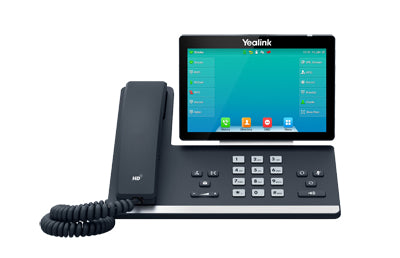

SIP-T57W, 16 VoIP-Konten, 7“ 800 x 480, USB 2.0, 2x RJ-45, PoE, 2x RJ-9, 259.4x220x211x44.5 mm
Description
Adjustable High-Resolution DisplayAligning with a fully adjustable display, the T5 Business Phone Series can easily fulfill the viewing needs at a variety of angles and under a variety of lighting conditions and finally provides optimized user experience.
Acoustic Shield technologyThe Yealink T5 Business Phone Series is designed with Yealink Acoustic Shield technology to deliver distraction-free voice clarity for remote participants by utilizing multiple microphones to create a virtual shield.
Corded Cordless PhoneThe Yealink New T5 Business Phone Series supports DECT handset compatibility via a DECT dongle Yealink DD10K, up to 4 cordless handsets. Seamless switching of calls between the desktop phone and the cordless DECT handset.
Advanced Wireless ConnectivityBuilt-in Bluetooth 4.2 for wireless headsets connection and enhanced mobility. Wi-Fi 2.4G/5G to help business maximize the use of wireless network, reduce internet cable cost and support clean and uncluttered workspace communications.
Specifications
| Features |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Volume control |
Buttons |
| Mounting |
Desk/Wall |
| Integrated voicemail |
Yes |
| Handset type |
Wired handset |
| Product colour |
Grey |
| Security |
|---|
| Security algorithms |
AES, HTTPS, MD5, SRTP |
| Design |
|---|
| Product type |
IP Phone |
| Mounting |
Desk/Wall |
| Handset type |
Wired handset |
| Product colour |
Grey |
| Performance |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Phone features |
|---|
| Speed dialling |
Yes |
| Short Message Service (SMS) |
Yes |
| Redialing |
Yes |
| Phonebook capacity |
1000 entries |
| Number of VoIP accounts |
16 |
| Message-waiting indicator (MWI) |
Yes |
| Answering machine |
Yes |
| Full duplex |
Yes |
| Do not disturb function |
Yes |
| Conference call |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Call transfer |
Yes |
| Call return |
Yes |
| Call pick up |
Yes |
| Call park |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Anonymous call rejection |
Yes |
| Anonymous call |
Yes |
| Call history |
Yes |
| Management features |
|---|
| Volume control |
Buttons |
| Integrated voicemail |
Yes |
| Display |
|---|
| Touchscreen |
Yes |
| Display resolution |
800 x 480 pixels |
| Display diagonal |
17.8 cm (7") |
| Display |
LCD |
| Camera |
|---|
| Front camera |
No |
| Audio |
|---|
| Voice codecs |
G.722, G.723.1, G.726, G.729A, G.729B, iLBC |
| Voice activity detection |
Yes |
| Speakerphone |
Yes |
| Microphone mute |
Yes |
| Comfort noise generation (CNG) |
Yes |
| Automatic gain control |
Yes |
| Adaptive jitter buffers |
Yes |
| Packet loss concealment (PLC) |
Yes |
| Anti-clipping (ACLP) |
Yes |
| Network |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Supported network protocols |
FTP/TFTP/HTTP/HTTPS |
| Security algorithms |
AES, HTTPS, MD5, SRTP |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| RJ-9 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| AC adapter output voltage |
5 V |
| AC adapter output current |
2 A |
| AC adapter input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
259.4 mm |
| Depth |
220 mm |
| Height |
211 mm |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Yes |
| Number of handles included |
1 pc(s) |
