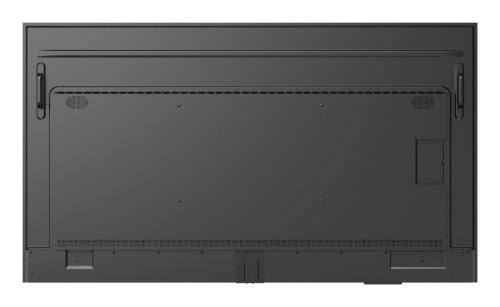

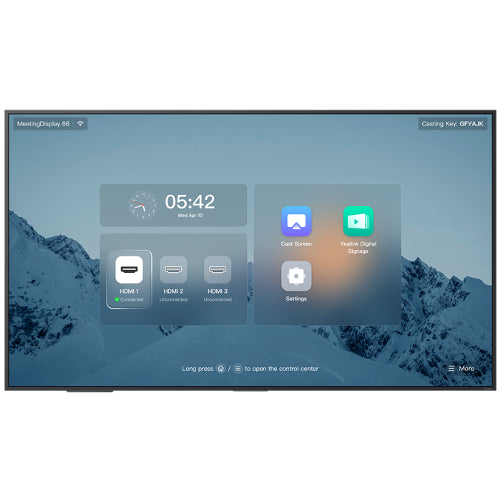

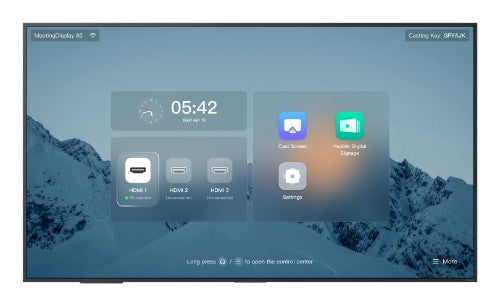

Yealink MeetingDisplay 86''

MeetingDisplay 86'' -display for unified MTR system, unified installation, one touch console

Key Features

• Unified installation, the customised structure makes installation easy.
• Unified coordination, supports digital signage, sleep, and wake-up functions.
• Unified management, manage MeetingDisplay and MTR device on one platform (YMCS or YDMP).
• Unified configuration, one-touch console is enough.

Description

The Yealink MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. The MeetingDisplay is available in 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The MeetingDisplay and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the MeetingDisplay without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, the meeting solution, led by the MTR system, can be centrally managed via YMCS/YDMP. Finally, this solution allows MeetingDisplay and MTR devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.

Specifications

Display
Display diagonal	165.1 cm (65")
Display resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Panel type	IPS
Display brightness	500 cd/m²
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Native refresh rate	60 Hz
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	24 W
Design
Product colour	Black
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Bezel width (bottom)	1.35 cm
Bezel width (side)	1.3 cm
Bezel width (top)	1.3 cm
Mounting type	Wall
Ports & interfaces
HDMI ports quantity	3
HDMI version	2.1
HDMI input ports quantity	3
DVI port	No
USB port	Yes
USB ports quantity	3
USB version	2.0
USB connector type	USB Type-A, USB Type-B
USB 2.0 Type-B ports quantity	1
RS-232 interface	Yes
Computer system
Computer system	Yes
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android 13
Power
Power consumption (typical)	268 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Power consumption (max)	323 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Display width	1927 mm
Display depth	61 mm
Display height	1099 mm
Display weight	45.2 kg
Packaging data
Package width	2065 mm
Package depth	215 mm
Package height	1155 mm
Package weight	58.7 kg
Logistics data
Country of origin	China
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
