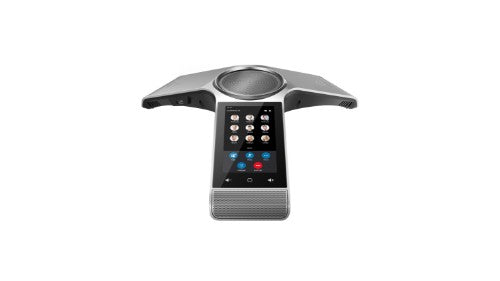

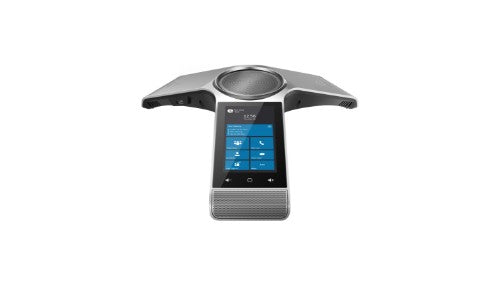

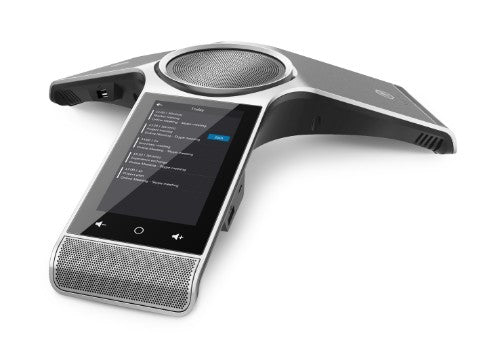

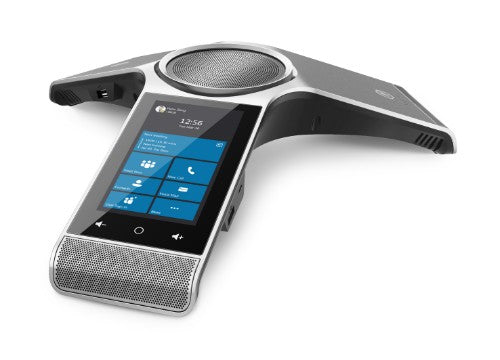

Yealink CP960 Skype for Business Edition

CP960 Skype for Business Edition, 5", 720 x 1280px, 1 x VoIP, 5-way, XML/LDAP, RJ-45, 802.11a/b/g/n/ac, Bluetooth 4.0, 2 x USB 2.0, 3.5 mm, 1 x USB Micro-B, PnP, Android 5.1

Key Features

• Optimal HD audio, full duplex technology
• Yealink Noise Proof Technology
• Built-in Bluetooth 4.0
• 5” 720x1280 multi-touch screen
• Compatible with Office 365
• Skype for Buisness Conference
• Presence status
• Calendar
• Boss/Admin
• Common Area Phone
• Hot desking
• SILK speech codec
• QoE (monitoring reports)
• Connect to PC via USB Micro-B port

Description

Optima HD IP Conference Phone Compatible with Microsoft® Skype for Business
The Yealink CP960, compatible with Microsoft® Skype for Business, is an enterprise-grade conference phone, bringing the Skype for Business experience and functionality from the desktop to the conference room. Based on Android OS, the CP960 not only unceasingly boosts the user experience, but also strikes an exquisite balance between simplicity and sophistication with Skype for Business user-interface. Delivering unparalleled audio clarity, the CP960 is armed with Yealink’s Optima HD Voice technology and SILK speech codec, that phone users will think they are sitting in the same room with one another. Besides, Pairing Yealink CP960 with your smartphone via Bluetooth or with your PC/tablet via USB Micro-B port allows you to turn the Yealink CP960 into a loudspeaker or microphone with ease as well as enjoy the superb HD communication. Also, CP960 enhances your office productivity by supporting multi phone functions, including Skype for Business conference, calendar, CAP, hot desking, Boss/Admin.

Key Features and Benefits
HD audio
The Yealink CP960 conference phone combines the hardware and software, including the Yealink
Noise Proof Technology, to fully improve its audio quality. Thanks to its built-in 3-microphone array, CP960 owns a 20-foot (6-meter) and 360-degree voice pickup range, regarding as an ideal
solution for any conference room that needs best audio experience, as if all participants are sitting
across the table from each other! In addition, through two add-on CP Wireless Expansion Mic CPW90, the Yealink CP960 provides long audio-capture distance at a radius of up to 20 meters
without any wiring troubles.

Easy to use
The 5-inch multi-touch screen and the Skype for Business interface provide for a rich visual presentation and easy menu navigation. The CP960 is fully compatible with Skype for Business and Office 365, making for a rich and capable ecosystem for team environment. Simply sign in with your Skype for Business account; your presence status and contacts immediately sync with the SFB client. The CP960 even lets users synchronize Outlook Calendar meeting schedules in real-time- join a meeting with just a tap.

Ease of deployment
Supporting Microsoft’s Skype for Business Server in-band provisioning and in-band configuration
management enables a carefree configuration and easier-than-ever mass deployment. Automati-
cally deployed on a variety of servers- http, https, tftp and ftp, Yealink CP960 can even be
pre-installed with Yealink’s premium software for Skype for Business prior to shipping, meaning
plug-and-play for customers immediately after unboxing.

Specifications

Features
Product type	IP conference phone
Control type	Buttons, Touch
Product colour	Black, Silver
Built-in display	Yes
Display diagonal	12.7 cm (5")
Display resolution	720 x 1280 pixels
Call recording	Yes
Voice codecs	AGC, AJB, CNG, G.722, G.722.1C, G.723, G.726, G.729, G.729A, OPUS, PCMA, PLC, Silk, VAD, iLBC
Echo cancellation	Yes
Noise reduction	Yes
Wi-Fi	Yes
Bluetooth	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Power over Ethernet (PoE)	Yes
Supported network protocols	IPv4/IPv6, SNTP, UDP/TCP/DNS-SRV
Authentication method	Digest
Quality of Service (QoS) support	Yes
Call hold	Yes
Call waiting	Yes
Phonebook capacity	1000 entries
Cable lock slot	Yes
Certification	CE, FCC,RoHS, REACH, ISO 9001, CCC
Number of microphones supported (max)	2
Security algorithms	AES, HTTPS, MD5, SSL/TLS
Conference call	Yes
Call forwarding	Yes
Microphone mute	Yes
Call transfer	Yes
Touchscreen	Yes
Number of microphone arrays	3
Microphone pick-up range	6 m
Conference call ways quantity	5
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Bluetooth version	4.0
Call return	Yes
Call history	Yes
Built-in speaker(s)	Yes
Speaker power	10 W
Speaker diameter	5.6 cm
Audio system full duplex	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Number of VoIP accounts	1
Emergency call	Yes
Direct call	Yes
Anonymous call	Yes
Anonymous call rejection	Yes
Volume control	Yes
Busy Lamp Field (BLF)	Yes
Compatible products	Skype for Business
Call management
Local dial plan	Yes
Black listing	Yes
Ports & interfaces
RJ-45 ports quantity	1
USB port	Yes
USB version	2.0
USB connector type	Micro-USB B, USB Type-A
USB ports quantity	3
Audio-in ports quantity	2
Audio-out ports quantity	1
Power
Power consumption (Power over Ethernet (PoE))	9.18 W
Operational conditions
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	338 mm
Depth	338 mm
Height	74 mm
Package width	392 mm
Package depth	405 mm
Package height	141 mm
Packaging content
Cables included	LAN (RJ-45)
Quick installation guide	Yes
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	401 mm
Master (outer) case gross weight	8.4 kg
Master (outer) case length	589 mm
Master (outer) case height	421 mm
Master (outer) case net weight	5.6 kg
