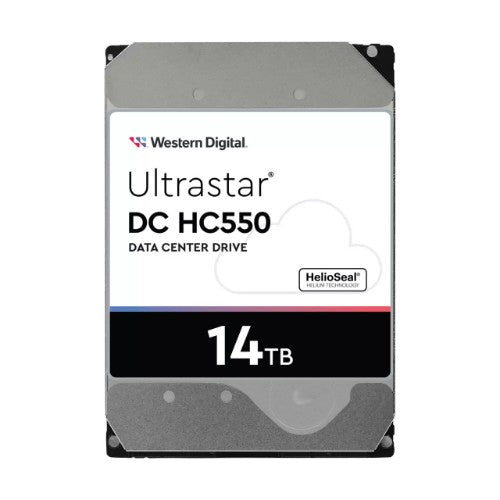

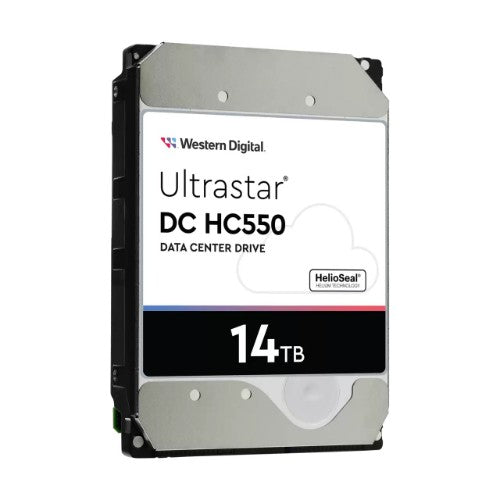

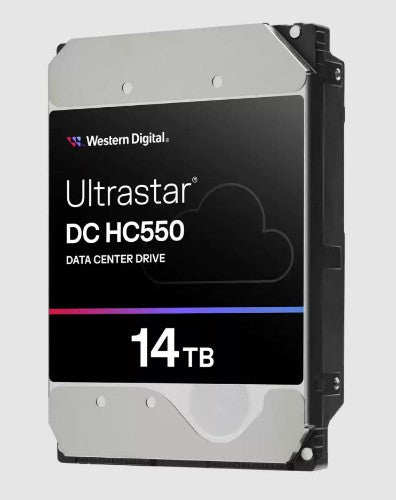

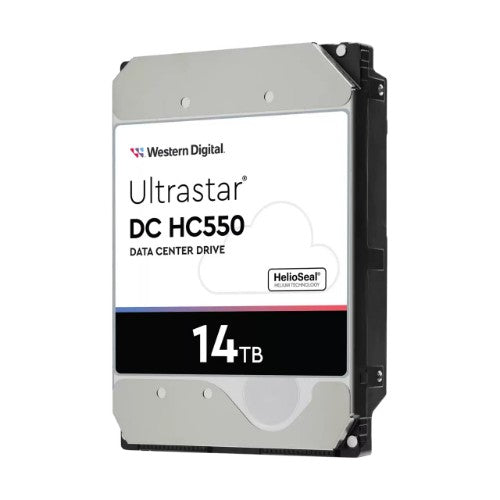

Western Digital Ultrastar DC HC550, 14 TB, 7200 RPM, 512 MB, 3.5", Serial ATA III
Description
Western Digital Ultrastar DC HC550. HDD capacity: 14 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III
Specifications
| Hard drive |
|---|
| Component for |
PC |
| HDD size |
3.5" |
| HDD capacity |
14 TB |
| Workload rate limit |
550 TB/year |
| HDD speed |
7200 RPM |
| Interface |
Serial ATA III |
| Average latency |
4.16 ms |
| Hot-swap |
No |
| HDD interface transfer rate |
6 Gbit/s |
| Mean time between failures (MTBF) |
2500000 h |
| Certification |
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL |
| Storage drive buffer size |
512 MB |
| Features |
|---|
| Type |
HDD |
| Component for |
PC |
| HDD size |
3.5" |
| HDD capacity |
14 TB |
| Workload rate limit |
550 TB/year |
| HDD speed |
7200 RPM |
| Interface |
Serial ATA III |
| Average latency |
4.16 ms |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Hot-swap |
No |
| HDD interface transfer rate |
6 Gbit/s |
| Mean time between failures (MTBF) |
2500000 h |
| Certification |
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL |
| Storage drive buffer size |
512 MB |
| 24/7 operation |
Yes |
| Noise level (idle) |
2 dB |
| Power |
|---|
| Power consumption (write) |
6.5 W |
| Power consumption (read) |
6.5 W |
| Power consumption (idle) |
5.6 W |
| Operating voltage |
5 / 12 V |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Width |
101.6 mm |
| Height |
26.1 mm |
| Depth |
147 mm |
| Weight |
690 g |
| Other features |
|---|
| Interface |
Serial ATA III |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Certification |
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL |
