SC/APC, ITU-G.984 GPON WAN, 1/2.5 GbE RJ45, 1.2 Gbps uplink / 2.5 Gbps downlink, up to 20 km, PoE, 5W, 76.5 x 76.5 x 26.4 mm
Description

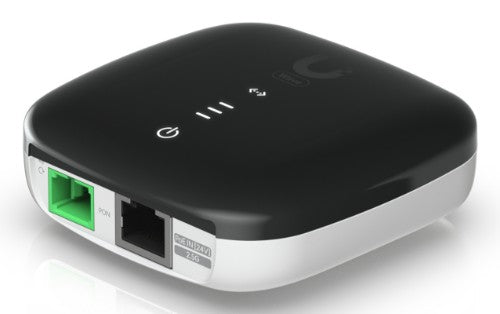

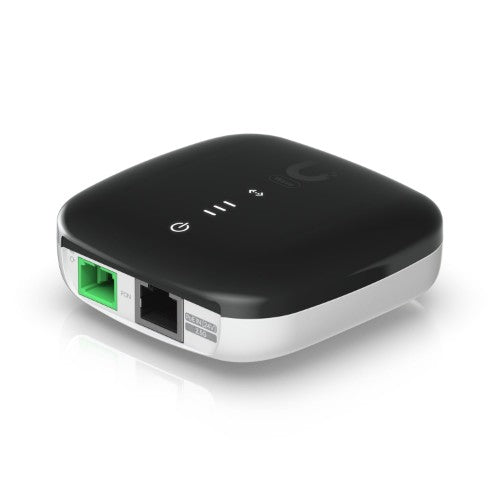

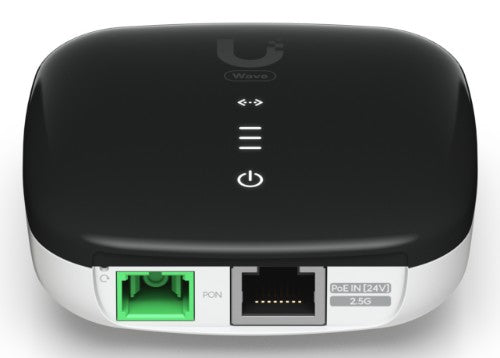

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
Specifications
| Design |
|---|
| Product type |
Optical network unit (ONU) |
| Product colour |
Black, White |
| Housing material |
Polycarbonate (PC) |

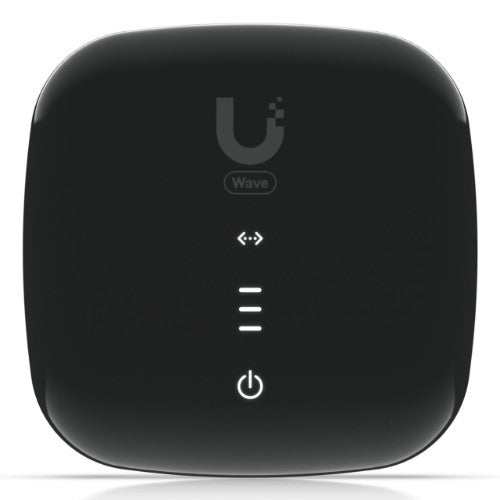

| LED indicators |
LAN, Power, Status |
| Network |
|---|
| ITU standards |
G.984 |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Switch layer |
L2/L3 |
| Upstream data rate |
1244 Mbit/s |
| Downstream data rate |
2488 Mbit/s |
| Transmission distance (max) |
20 km |
| Tx wavelength (min) |
1310 nm |
| Rx wavelength (min) |
1490 nm |
| VLAN support |
Yes |
| Tx power (min) |
1.5 dBmW |
| Tx power (max) |
5 dBmW |
| Management features |
|---|
| Reset button |
Yes |
| Ports & interfaces |
|---|

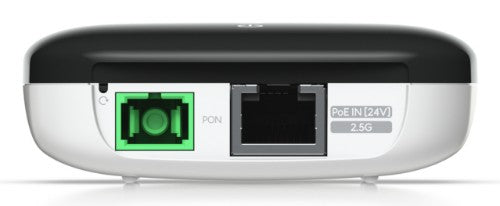

| Fiber ports quantity |
1 |
| Fiber optic connector |
SC/APC |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
5 W |

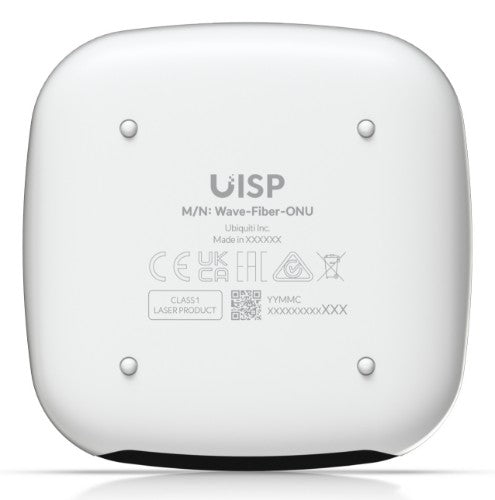

| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
76.5 mm |
| Depth |
76.5 mm |
| Height |
26.4 mm |
| Weight |
78 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
