5.4 Gbps, 31-client, 2.5 GbE RJ45, 10G SFP+, Quad-core ARM Cortex-A53 at 1.4 GHz, 802.11ax (WiFi 6), IPX6
Description

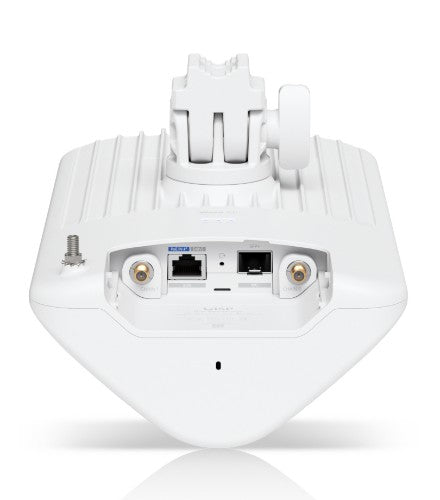

60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.
Specifications
| Data transmission |
|---|
| Maximum transfer distance |
6000 m |
| Antenna |
|---|
| Antenna gain level (max) |
20 dBi |
| Antenna connector type |
RP-SMA |
| Wireless LAN features |
|---|
| Frequency band |
57 - 71 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Antenna gain level (max) |
20 dBi |
| Antenna connector type |
RP-SMA |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,1000,2500 Mbit/s |
| Number of users |
31 user(s) |
| Ethernet LAN interface type |
2.5 Gigabit Ethernet |
| Frequency band |
57 - 71 GHz |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
1 |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Security |
|---|
| Security algorithms |
AES, SNMP, WPA2-PSK |
| Features |
|---|
| Product type |
Network bridge |
| Reset button |
Yes |
| Processor frequency |
1.4 MHz |
| Network Time Protocol (NTP) client |
Yes |
| International Protection (IP) code |
IPX6 |
| Material |
Aluminium, Polycarbonate (PC) |
| LED indicators |
GPS, LAN, Power |
| Internal memory |
512 MB |
| Product colour |
White |
| Mounting type |
Pole |
| Power |
|---|
| Power consumption (max) |
24 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
48 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Management features |
|---|
| LED indicators |
GPS, LAN, Power |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Technical details |
|---|
| Material |
Aluminium, Polycarbonate (PC) |
| Internal memory |
512 MB |
| Product colour |
White |
| Quantity per pack |
1 pc(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions |
|---|
| Weight |
1.5 kg |
| Width |
158.3 mm |
| Depth |
100.2 mm |
| Height |
286.8 mm |
| Processor |
|---|
| Processor frequency |
1.4 MHz |
| Packaging content |
|---|
| Power supply included |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
