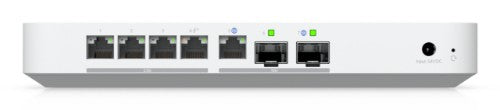

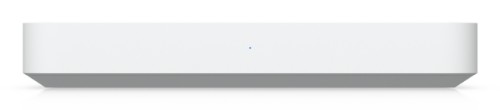

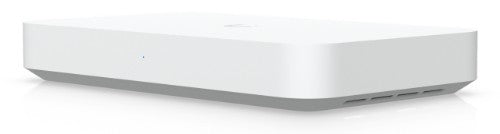

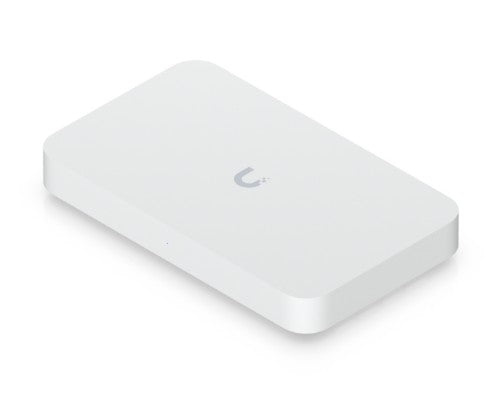

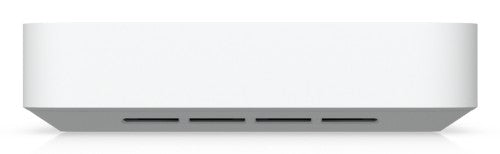

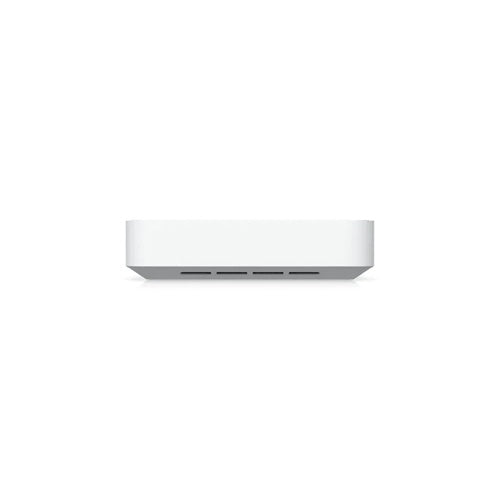

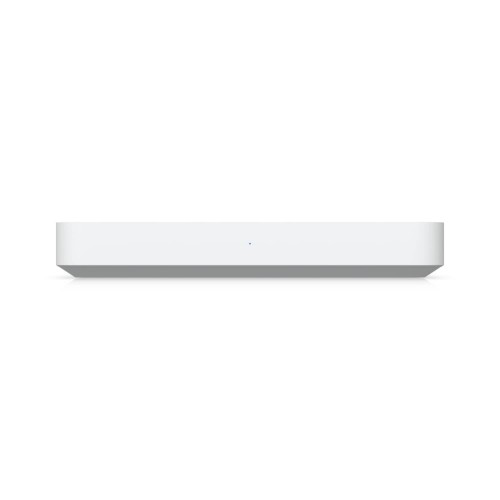

Ubiquiti UXG-Fiber (30W) gateway/controller 1000, 2500, 10000 Mbit/s
SAVE 17%

Ubiquiti

Ubiquiti UXG-Fiber (30W) gateway/controller 1000, 2500, 10000 Mbit/s

Read reviews
SKU: UXG-FIBER
Your price $593.69
List price $713.35 Save $119.66
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Managed, 4x 2.5 GbE LAN, PoE+, 10G SFP+ WAN, 10 GbE RJ45 WAN, 10G SFP+ LAN, Quad-core ARM Cortex-A73 at 2.2 GHz, 2 GB, Polycarbonate, white, 212.8 x 127.6 x 30 mm

Key Features

  • Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
  • (1) 10G SFP+ LAN port
  • Integrated 4-port switch with (1) PoE+ port

Description

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

Specifications

Design
LED indicators Activity, LAN, Link, System
Product colour White
Enclosure material Polycarbonate (PC)
Performance
Built-in processor Yes
Processor frequency 2200 MHz
Number of processors installed 1
Internal memory 2000 MB
Control display unit No
Processor model Cortex-A73
Processor manufacturer ARM
Processor family ARM Cortex
Product colour White
Enclosure material Polycarbonate (PC)
Protocols
Routing protocols OSPF
Network
Ethernet LAN data rates 1000,2500,10000 Mbit/s
Load balancing Yes
Bluetooth Yes
Security
VLAN support Yes
Security algorithms IPSec, TLS
Firewall security Yes
Ports & interfaces
WAN connection Ethernet (RJ-45), SFP
Ethernet LAN (RJ-45) ports 5
DC-in jack Yes
SFP+ ports quantity 2
Management features
Reset button Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Power
Power over Ethernet (PoE) Yes
Input voltage 100 - 240 V
Input current 1.1 A
DC input voltage 54 V
Power consumption (max) 25 W
Power over Ethernet (PoE) type supported PoE+
Electromagnetic (EMP) protection Yes
Electromagnetic (EMP) protection (air) 8 kV
Electromagnetic (EMP) protection (contact) 4 kV
Weight & dimensions
Weight 605 g
Width 212.8 mm
Height 30 mm
Depth 127.6 mm

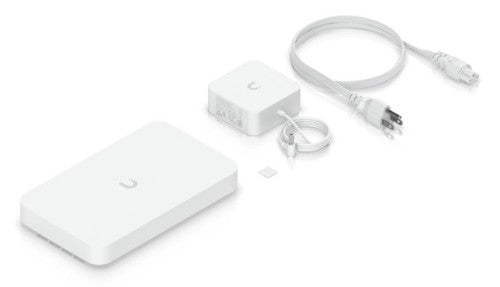

Packaging content
Cables included Power
AC adapter included Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Sustainability
Sustainability compliance Yes
Technical details
Built-in processor Yes
Processor frequency 2200 MHz
Number of processors installed 1
AC adapter included Yes
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators Activity, LAN, Link, System
Memory
Internal memory 2000 MB
Display
Control display unit No
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Features
Built-in processor Yes
Processor frequency 2200 MHz
Number of processors installed 1
Brand
Ubiquiti
SKU
UXG-FIBER
