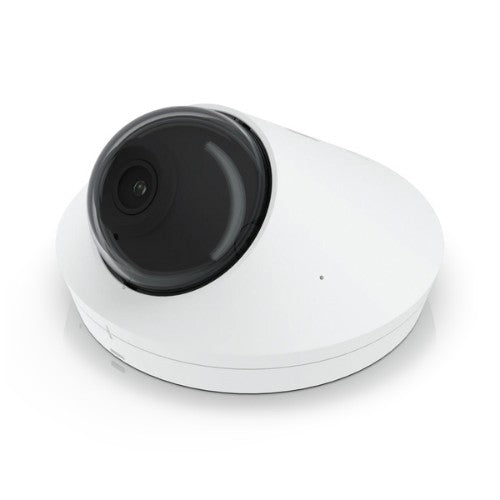

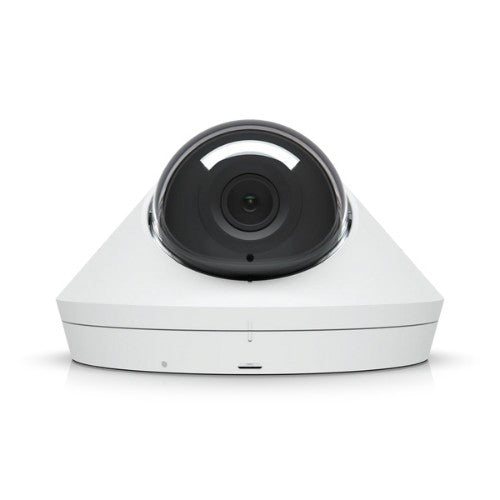

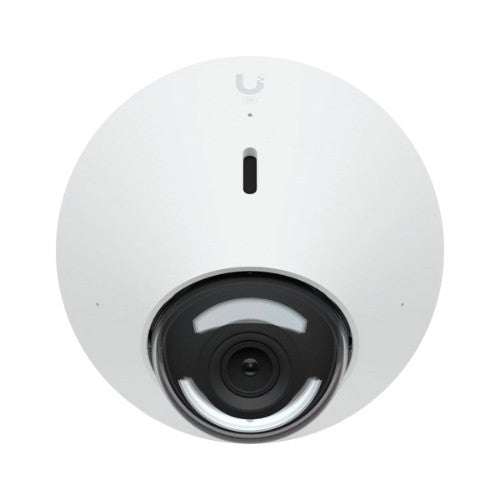

2K HD, 30 FPS camera with a 5MP CMOS sensor, 2688 x 1512 (16:9), Ø109.2 x 64.5 mm, white, 3 units
Key Features
- 2K HD, 30 FPS camera with a 5MP CMOS sensor
- Wide-angle view (102.4˚)
- Weatherproof IPX4-rated enclosure with IK08-rated vandal resistance
- Improved low-light performance and IR night vision up to 10m
- Improved dynamic range
Description
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
Specifications
| Performance |
|---|
| Processor model |
ARM Cortex-A7 |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Certification |
FCC, IC, CE |
| Built-in processor |
Yes |
| Design |
|---|
| IK code |
IK08 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| International Protection (IP) code |
IPX4 |
| Housing material |
Aluminium, Polycarbonate (PC), Stainless steel |
| Camera |
|---|
| Camera pan control |
Yes |
| Lens viewing angle, horizontal |
102.4° |
| Lens viewing angle, vertical |
71.4° |
| Lens viewing angle, diagonal |
134.3° |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Number of sensors |
1 |
| Lens system |
|---|
| Number of lenses |
1 |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
10 m |
| LED type |
IR |
| Video |
|---|
| Noise reduction |
Yes |
| Image quality adjustment |
Brightness, Colour depth, Contrast, DNR |
| Noise reduction technology |
3D noise reduction |
| Maximum resolution |
2688 x 1512 pixels |
| Video compression formats |
H.264, M-JPEG |
| Frame rate |
30 fps |
| Total megapixels |
5 MP |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Network |
|---|
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Built-in HDD |
No |
| Ports & interfaces |
|---|

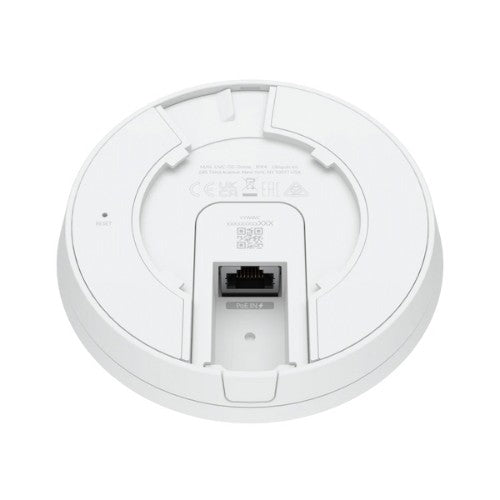

| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power source type |
PoE |
| AC input voltage |
37 - 57 V |
| Power consumption (typical) |
5 W |
| Certificates |
|---|
| Certification |
FCC, IC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Depth |
64.2 mm |
| Diameter |
10.9 cm |
| Weight |
390 g |
| Packaging content |
|---|

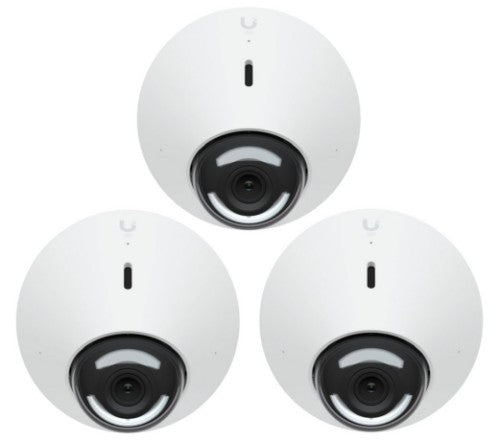

| Number of cameras |
3 |
| Mounting kit |
Yes |
| Cables included |
LAN (RJ-45) |
| Other features |
|---|
| Video compression formats |
H.264, M-JPEG |
