Network Video Recorder Instant, Compact, 6-port PoE, HDMI, 3.5" HDD support, 1.14" screen
Description

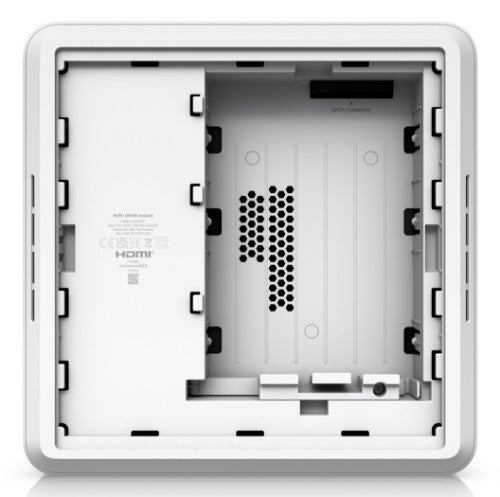

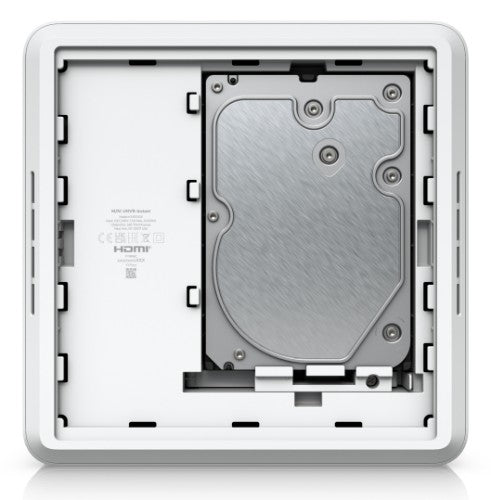

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Specifications
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1.7 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Processor cores |
4 |
| Maximum resolution |
3840 x 2160 pixels |
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Hard drive |
|---|
| Number of HDDs supported |
1 |
| HDD size |
3.5" |
| Storage |
|---|
| Number of HDDs supported |
1 |
| HDD size |
3.5" |
| Ports & interfaces |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity |
6 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
7 |
| Power over Ethernet (PoE) |
Yes |
| HDMI output |
Yes |
| Features |
|---|
| Reset button |
Yes |
| Product colour |
White |
| LED indicators |
LAN, PoE |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1.7 GHz |
| Processor cores |
4 |
| Display |
|---|
| Display diagonal |
2.9 cm (1.14") |
| Built-in display |
Yes |
| Power |
|---|
| Power consumption (max) |
9 W |
| Total Power over Ethernet (PoE) budget |
40 W |
| Power over Ethernet (PoE) power per port |
15.4 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
85219000 |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), UL |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
220 mm |
| Height |
47 mm |
| Weight |
1.04 kg |
| Packaging content |
|---|
| Cables included |
Power |
| Logistics data |
|---|
| Harmonized System (HS) code |
85219000 |
