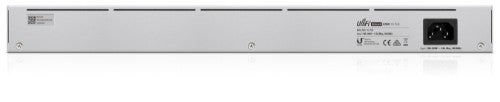

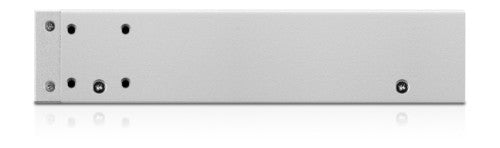

Ubiquiti UniFi USW-16-POE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
SAVE 14%

Ubiquiti

Ubiquiti UniFi USW-16-POE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Read reviews
SKU: USW-16-POE-AU
Your price $594.83
List price $691.90 Save $97.07
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

USW-16-POE Gen 2, AC/DC, Internal, 60W, (16) 10/100/1000 RJ45 Ports, (2) 1G SFP, 442.4 x 200 x 43.7 mm

Description

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Specifications

Virtual LAN features
VLAN support Yes
Management features
Switch layer L2/L3
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 2
Network
Networking standards IEEE 802.3af, IEEE 802.3at
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Flow control support Yes
Auto-sensing Yes
Auto MDI/MDI-X Yes
Data transmission
Switching capacity 36 Gbit/s
Throughput 18000 Mpps
Jumbo frames support Yes
Static route Yes
Forwarding rate 26.78 Mpps
Security
Authentication type IEEE 802.1x, RADIUS
Design
Rack mounting Yes
Product colour Silver
Form factor 1U
LED indicators Activity, Link, PoE, Speed, System
Certification CE, FCC, IC
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
DC input voltage 44 - 57 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 32 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 48 W
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442.4 mm
Depth 200 mm
Height 43.7 mm
Weight 2.8 kg
Brand
Ubiquiti
SKU
USW-16-POE-AU
