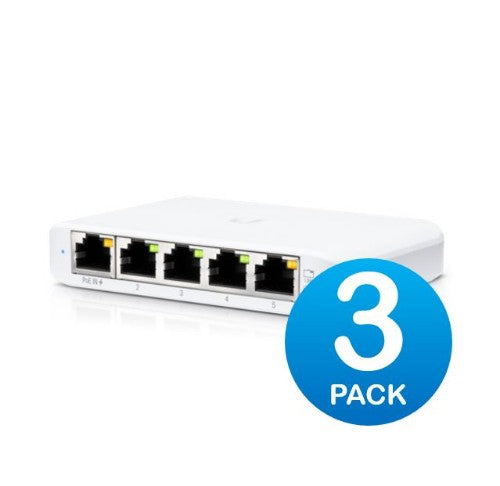

Managed, 5x Gigabit Ethernet, PoE, 107.16 x 70.15 x 21.17 mm, White, 3-pack
Key Features
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Description
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| 10G support |
No |
| Data transmission |
|---|
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.44 Mpps |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
White |
| LED indicators |
Activity, Link, Speed, Status |
| Certification |
CE, FCC, IC |
| Power |
|---|
| Power consumption (max) |
2.5 W |
| Power supply included |
No |
| DC input voltage |
5 V |
| Power source |
PoE/USB |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
1 |
| Power over Ethernet (PoE) voltage |
57 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
107.2 mm |
| Depth |
70.2 mm |
| Height |
21.2 mm |
| Weight |
150 g |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
