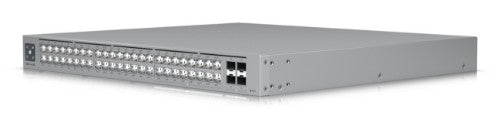

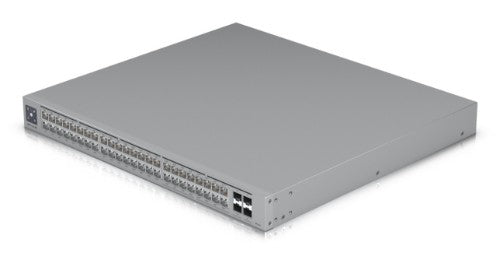

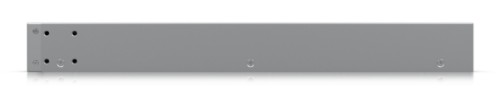

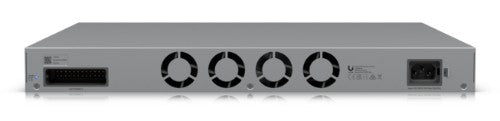

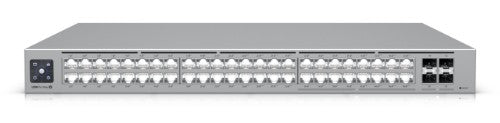

Ubiquiti UniFi Pro Max 48 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
SAVE 19%

Ubiquiti

Ubiquiti UniFi Pro Max 48 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Read reviews
SKU: USW-PRO-MAX-48-POE
Your price $2,228.92
List price $2,745.27 Save $516.35
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

720W, 32 x GbE RJ45, 16 x 1/2.5 GbE RJ45, 4 x 10G SFP+, 224 Gbps, 1.3" touchscreen, SGCC steel, 1U

Key Features

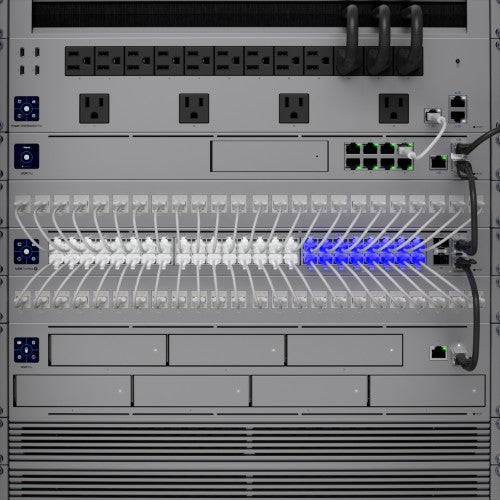

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
  • (32) GbE ports including (24) PoE+ and (8) PoE++
  • (4) 10G SFP+ ports
  • DC power backup ready
  • 720W total PoE availability
  • Managed with UniFi Network 8.0.24 and later

Description

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

Specifications

Management features
Reset button Yes
Switch layer L3
Switch type Managed
Quality of Service (QoS) support Yes
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 32
Power connector AC-in jack
2.5G Ethernet (copper) ports quantity 16
Network
Networking standards IEEE 802.1x
Number of VLANs 1000
VLAN support Yes
Rate limiting Yes
Port mirroring Yes
Flow control support Yes
Broadcast storm control Yes
10G support No
Virtual LAN features Voice VLAN
IPv4 routes 12000
IGMP snooping Yes
Data transmission
MAC address table 32000 entries
Switching capacity 224 Gbit/s
Jumbo frames support Yes
Packet buffer memory 2 MB
Static route Yes
Forwarding rate 167 Mpps
Throughput 112 Gbit/s
Number of VLANs 1000
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Design
Reset button Yes
Rack mounting Yes
Display type LCM
Backlight display Yes
Product colour Grey
Form factor 1U
LED indicators System
Housing material SGCC
Power
Power consumption (max) 820 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Redundant power supply (RPS) support Yes
Power source AC
Power connector AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 32
Total Power over Ethernet (PoE) budget 720 W
Power over Ethernet (PoE) voltage 57 V
Power over Ethernet (PoE) type supported PoE+, PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity 16
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 341.2 BTU/h
Virtual LAN features
Number of VLANs 1000
VLAN support Yes
Virtual LAN features Voice VLAN
Weight & dimensions
Width 442.4 mm
Depth 399.6 mm
Height 43.7 mm
Weight 6.2 kg
Packaging content
Rack mount kit Yes
Manual Yes
Cables included Power
Sustainability
Sustainability compliance Yes
Performance
Packet buffer memory 2 MB
Technical details
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging data
Rack mount kit Yes
Manual Yes
Cables included Power
Brand
Ubiquiti
SKU
USW-PRO-MAX-48-POE
