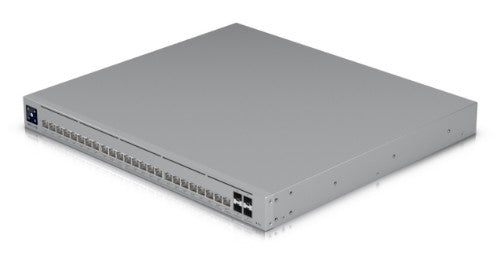

Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey
SAVE 27%

Ubiquiti

Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey

Read reviews
SKU: USW-PRO-HD-24-POE
Your price $1,583.93
List price $2,183.45 Save $599.52
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

230 Gbps, (24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-), 56W, 22x 2.5/1 GbE, 100/10 MbE RJ45, 2x 10/5/2.5/1 GbE, 100 MbE RJ45, 4x 10/1G SFP+, SGCC steel, 442.4 x 400 x 44 mm

Key Features

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (22) 2.5 GbE, (2) 10 GbE PoE++ ports
  • (4) 10G SFP+ ports
  • DC power backup ready**
  • 600W total PoE availability

Description

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Specifications

Management features
Reset button Yes
Switch layer L2/L3
Switch type Managed
Quality of Service (QoS) support Yes
Multicast support Yes
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 22
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Power connector AC/DC
2.5G Ethernet (copper) ports quantity 22
10G Ethernet (copper) ports quantity 2
Network
Networking standards IEEE 802.1x
Number of VLANs 1000
VLAN support Yes
Rate limiting Yes
Port mirroring Yes
Flow control support Yes
Broadcast storm control Yes
10G support Yes
Virtual LAN features Voice VLAN
IPv4 routes 12000
IGMP snooping Yes
Data transmission
MAC address table 32000 entries
Switching capacity 230 Gbit/s
Jumbo frames support Yes
Packet buffer memory 2 MB
Static route Yes
Forwarding rate 171 Mpps
Throughput 115 Gbit/s
Number of VLANs 1000
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Design
Reset button Yes
Rack mounting Yes
Stackable Yes
Display type LCM
Product colour Grey
Form factor 1U
LED indicators Link, Speed, Status
Housing material SGCC
Power
Power consumption (max) 60 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Redundant power supply (RPS) support Yes
Power source AC/DC/PoE
Power connector AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 600 W
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
Number of VLANs 1000
VLAN support Yes
Virtual LAN features Voice VLAN
Weight & dimensions
Width 442.4 mm
Depth 400 mm
Height 44 mm
Weight 6.2 kg
Packaging content
Rack mount kit Yes
Cables included Power
Performance
Stackable Yes
Packet buffer memory 2 MB
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging data
Rack mount kit Yes
Cables included Power
Brand
Ubiquiti
SKU
USW-PRO-HD-24-POE
