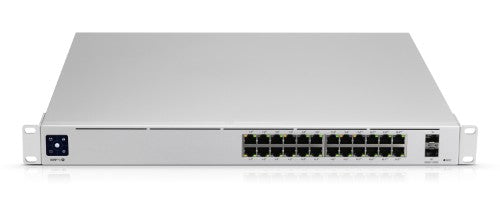

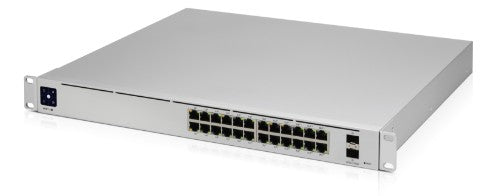

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

USW-Pro-24-POE Gen 2, AC/DC, Internal, 450W, (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+, 442.4 x 285.4 x 43.7 mm

Description

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Specifications

Management features
Reset button	Yes
Switch layer	L2/L3
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Full duplex	Yes
Number of VLANs	1000
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
IPv4 routes	64
IGMP snooping	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	88 Gbit/s
Throughput	44000 Mpps
Jumbo frames support	Yes
Packet buffer memory	2 MB
Static route	Yes
Forwarding rate	65.472 Mpps
Number of VLANs	1000
Security
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP relay, DHCP server, DHCP snooping
Design
Reset button	Yes
Rack mounting	Yes
Display type	LCM
Product colour	Silver
Form factor	1U
LED indicators	Activity, Link, PoE, Speed, System
Certification	CE, FCC, IC
Power
Power consumption (max)	450 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	64 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
Number of VLANs	1000
VLAN support	Yes
Weight & dimensions
Width	442.4 mm
Depth	285.4 mm
Height	43.7 mm
Weight	4.3 kg
Performance
Packet buffer memory	2 MB
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Logistics data
Harmonized System (HS) code	85176990
