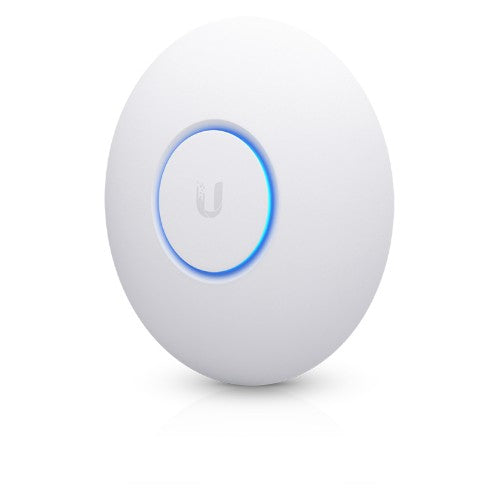

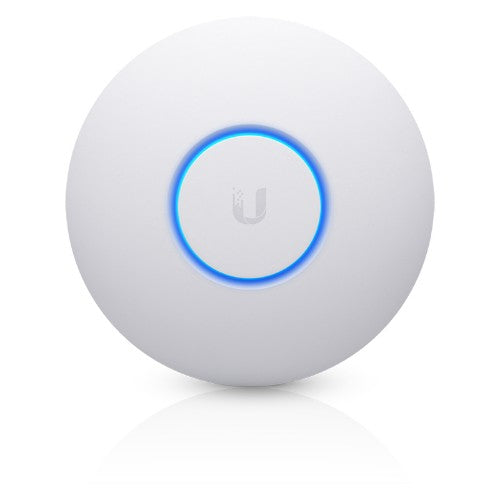

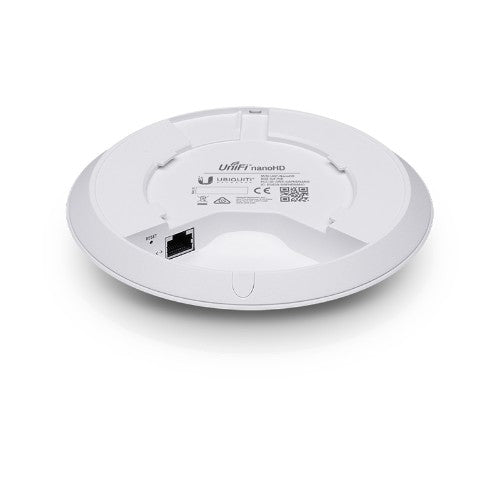

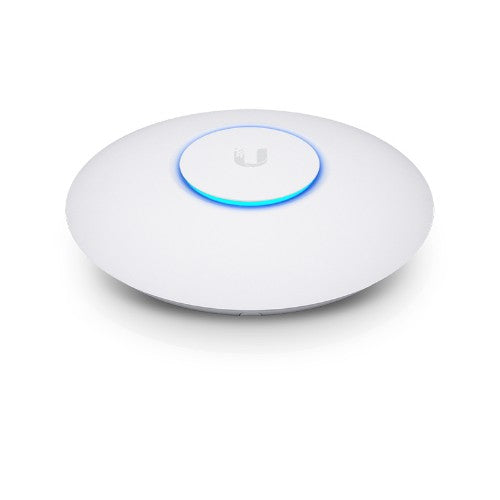

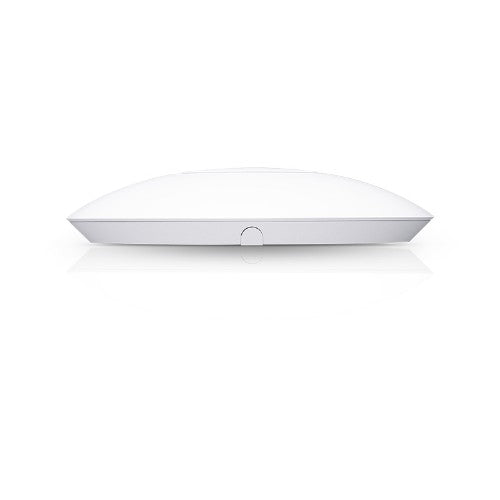

UniFi nanoHD, 2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 802.3af, 3 pcs
Key Features
- 2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate)
- 802.3af
- Same mount as UAP-AC-Lite
Description
Scalable Enterprise Wi-Fi ManagementUniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save Money and Save Time UniFi comes bundled with a non-dedicated software controller that can be deployed
on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the
option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one (or
upgrade to a five‑pack) and expand to thousands while maintaining a single unified management system.
Specifications
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wireless isolation |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Maximum data transfer rate |
1733 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Number of users |
200 user(s) |
| VLAN support |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q |
| Certification |
CE, FCC, IC |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wireless isolation |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Maximum data transfer rate |
1733 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Number of users |
200 user(s) |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Throughput data rate |
1733 Mbit/s |
| Security |
|---|
| Number of SSID supported |
8 |
| Security algorithms |
AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2 |
| Service Set Identifier (SSID) features |
SSID broadcast on/off |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (typical) |
10.5 W |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
44 - 57 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Internal |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Certification |
CE, FCC, IC |
| Antenna |
|---|
| Antenna gain level (max) |
3 dBi |
| Antenna features |
Integrated antenna |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Weight & dimensions |
|---|
| Width |
160 mm |
| Depth |
160 mm |
| Height |
32.6 mm |
| Weight |
300 g |
| Packaging content |
|---|
| Quantity per pack |
3 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 70 °C |
| Logistics data |
|---|
| Quantity per pack |
3 pc(s) |
| Harmonized System (HS) code |
85176990 |
