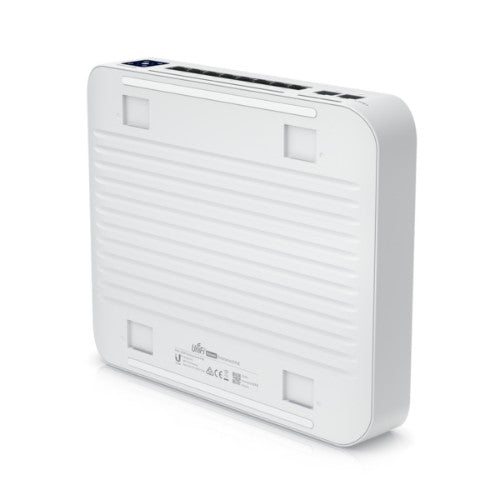

Fully managed, L3, 8x 2.5GbE RJ-45 ports, 2x 10G SFP+ ports, 80 Gbps switching capacity, PoE, UniFi Network
Key Features
- (1) 1.3" LCM color touchscreen with AR switch management
- (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- 120W total PoE supply
- Wall-mountable (kit included)
Description
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Specifications
| Management features |
|---|
| Switch layer |
L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| 10G support |
No |
| Data transmission |
|---|
| Switching capacity |
80 Gbit/s |
| Forwarding rate |
59.52 Mpps |
| Throughput |
40 Gbit/s |
| Design |
|---|
| Wall mountable |
Yes |
| Rack mounting |
Yes |
| Product colour |
Stainless steel |
| LED indicators |
Activity, Link |
| Housing material |
Polycarbonate (PC) |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
2 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
32 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
120 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
248 mm |
| Depth |
200 mm |
| Height |
44 mm |
| Weight |
2.4 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
CE |
| Certificates |
|---|
| Compliance certificates |
CE |
| Packaging data |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
