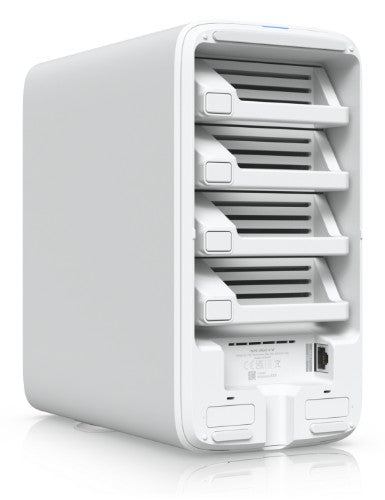

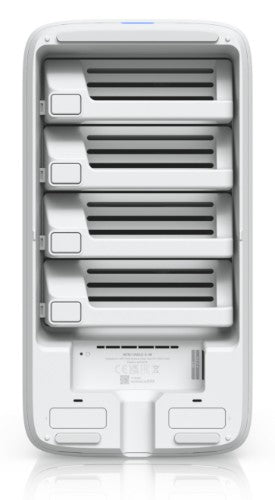

Desktop, 4x 2.5/3.5" drive bays, 2x M.2 NVMe SSD bays, 2.5 GbE RJ45 (2.5G/1G/100M/10M), 5 Gbps USB-C, PoE+++, Quad-Core ARM Cortex-A55 at 1.7 GHz, Bluetooth 4.1, 1.47" color LCM
Description
UniFi Network Attached Storage with (4) 2.5/3.5" HDD bays, (2) M.2 NVMe SSD cache slots, 2.5 GbE networking, USB-C connectivity, and an included PoE+++ adapter, all in a compact footprint.
Specifications
| Storage |
|---|
| NVMe |
Yes |
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
4 |
| Storage drive size |
2.5/3.5" |
| Storage drive sizes supported |
2.5,3.5" |
| Number of M.2 (M & B) slots |
2 |
| Processor |
|---|
| Processor manufacturer |
ARM |
| Processor architecture |
ARM Cortex-A57 |
| Processor family |
Cortex-A |
| Processor model |
Cortex-A57 |
| Processor frequency |
1.7 GHz |
| Processor cores |
4 |
| Memory |
|---|
| Internal memory |
4 GB |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Design |
|---|
| Chassis type |
Desktop |
| Product colour |
White |
| Housing material |
Polycarbonate (PC) |
| LED indicators |
Status, System |
| Built-in display |
Yes |
| Display type |
LCM |
| Performance |
|---|
| Type |
NAS |
| Backup function |
Yes |
| Web-based management |
Yes |
| Power |
|---|
| Power consumption (max) |
90 W |
| Power supply location |
External |
| Weight & dimensions |
|---|
| Width |
129 mm |
| Depth |
246 mm |
| Height |
224.5 mm |
| Weight |
2.6 kg |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging content |
|---|
| External power adapter |
Yes |
| Cables included |
Power |
| Power cables quantity |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Other features |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
