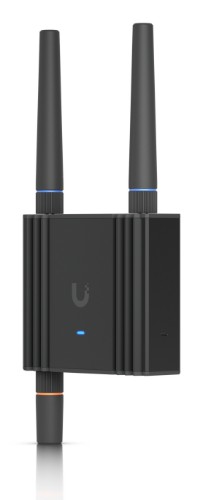

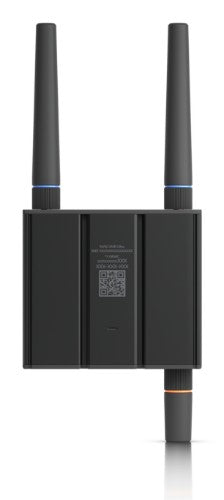

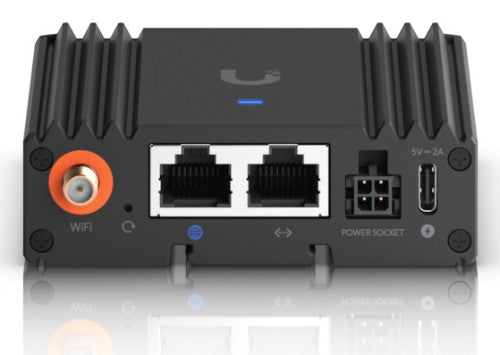

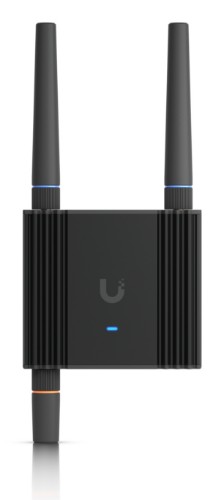

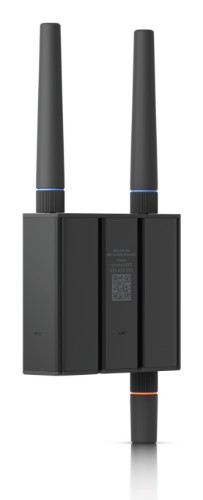

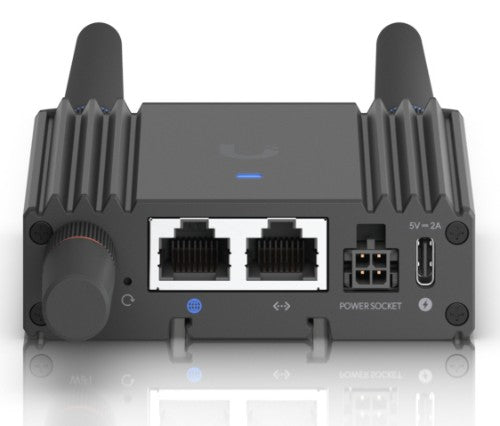

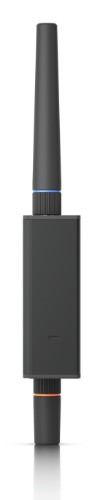

Ubiquiti UMR-Ultra Cellular network router
SAVE 2%

Ubiquiti

Ubiquiti UMR-Ultra Cellular network router

Read reviews
SKU: UMR-ULTRA
Your price $256.91
List price $261.25 Save $4.34
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Mobile Router Ultra, LTE, wired WAN, WiFi, nano-SIM, 2x FE RJ45, polycarbonate, aluminum

Key Features

  • Site-to-site VPN and VPN client routing
  • (2) FE RJ45 ports
  • Automatic failover among LTE, wired WAN and WiFi
  • Powered using USB Type-C or 4-pin DC power socket
  • Wall and DIN rail mount options
  • Optional Mobility Cloud Subscription
  • WiFi 4 single chain 2.4 GHz radio

Description

Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.

Specifications

Technical details
Mounting DIN-rail/Wall mounting
Device type Cellular network router
Data network 4G
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), PTCRB, GCF
Ethernet LAN features
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN Yes
Ethernet LAN interface type Fast Ethernet
Network bridge Yes
Cellular interface
Number of SIM cards 1
4G standard LTE
Network
Ethernet LAN Yes
Design
Mounting DIN-rail/Wall mounting
Housing material Aluminium, Polycarbonate (PC)
Device type Cellular network router
Product colour Black
Reset button Yes
LED indicators Status
Wireless LAN features
Wi-Fi Yes
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported 1,2,5.5,6,9,11,12,18,24,36,48,54,150,6.5 Mbit/s
Wi-Fi frequency 2.4 GHz
MIMO Yes
Mobile network
Number of SIM cards 1
Data network 4G
4G standard LTE
SIM card type NanoSIM
Data transfer rate (LTE) (upload) 50 Mbit/s
Data transfer rate (LTE) (download) 150 Mbit/s
4G LTE category 4
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB port Yes
USB port type USB Type-C
Security
Port forwarding Yes
Security algorithms IPSec
Firewall Yes
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), PTCRB, GCF
Packaging content
User guide Yes
Material
Housing material Aluminium, Polycarbonate (PC)
Performance
Antenna connector type SMA/RP-SMA
Antenna type External
Antennas quantity 3
Detachable antenna(s) Yes
Antenna
Antenna connector type SMA/RP-SMA
Antenna type External
Antennas quantity 3
Detachable antenna(s) Yes
Power
Power consumption (typical) 5.7 W
Input voltage 5 - 30 V
Power source type DC, USB
Operational conditions
Operating temperature (T-T) -30 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Weight 200 g
Width 82 mm
Depth 26 mm
Height 193.5 mm
Packaging data
User guide Yes
Brand
Ubiquiti
SKU
UMR-ULTRA
