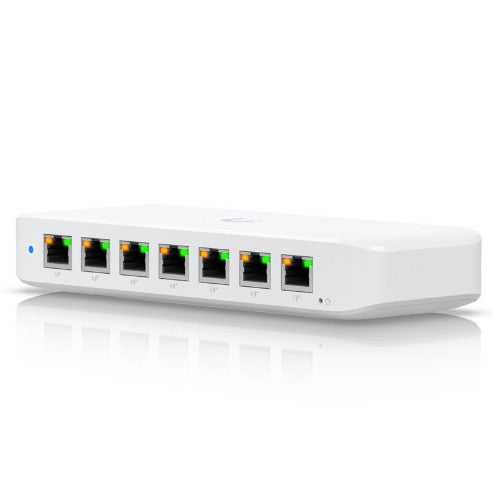

L2, 8x RJ-45, 16 Gbps Switching capacity, PoE, 210 W
Key Features
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input
Description
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Multicast support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Power connector |
DC-in jack |
| Network |
|---|
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Switching capacity |
16 Gbit/s |
| Jumbo frames support |
Yes |
| Throughput |
8 Gbit/s |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Reset button |
Yes |
| Wall mountable |
Yes |
| Rack mounting |
No |
| Product colour |
White |
| LED indicators |
Activity, Link, PoE, Status |
| Housing material |
Polycarbonate (PC) |
| Certification |
CE, FCC, IC |
| Power |
|---|
| Power consumption (max) |
9 W |
| Power supply included |
Yes |
| Number of power supply units |
1 |
| Input current |
3.9 A |
| DC input voltage |
44 - 57 V |
| Power source |
DC/PoE |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
7 |
| Total Power over Ethernet (PoE) budget |
202 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
203 mm |
| Depth |
76 mm |
| Height |
33 mm |
| Weight |
320 g |
| Packaging content |
|---|
| Manual |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Packaging data |
|---|
| Manual |
Yes |
