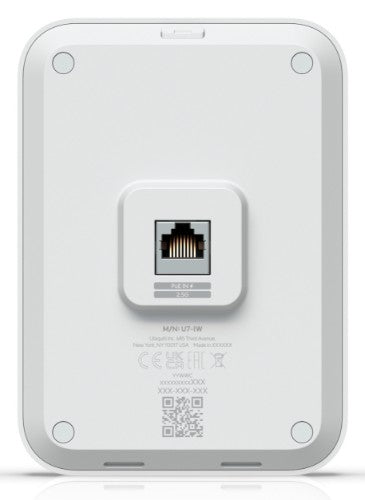

Wall-mounted, WiFi 7, 115 m2 (1,250 ft2), 3x 2.5 GbE RJ45 ports, PoE, 13W, Polycarbonate, aluminum alloy, 137 x 98.7 x 30.2 mm
Description
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Specifications
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
4300 Mbit/s |
| Ethernet LAN data rates |
2500 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Number of users |
200 user(s) |
| VLAN support |
Yes |
| Reset button |
Yes |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Features |
|---|
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
4300 Mbit/s |
| Ethernet LAN data rates |
2500 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Number of users |
200 user(s) |
| VLAN support |
Yes |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Fast roaming |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4300 Mbit/s |
| Fit AP mode features |
Hotspot 2.0 |
| Spatial streams |
4 |
| Coverage area |
115 m² |
| Wireless meshing |
Yes |
| Maximum Tx power (2.4 GHz) |
23 dBmW |
| Maximum Tx power (5 GHz) |
24 dBmW |
| Security |
|---|
| Security algorithms |
PPSK |
| Management features |
|---|
| Access point management |
Wi-Fi schedule |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| Power |
|---|
| Power consumption (max) |
13 W |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
42.5 - 57 V |
| Design |
|---|
| Placement |
Wall |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Reset button |
Yes |
| LED indicators |
Status |
| Product colour |
White |
| Antenna |
|---|
| Antenna type |
Internal |
| Antennas quantity |
4 |
| Antenna gain level (max) |
8 dBi |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Software |
|---|
| Fast roaming |
Yes |
| Weight & dimensions |
|---|
| Width |
98.7 mm |
| Depth |
30.2 mm |
| Height |
137 mm |
| Weight |
400 g |
| Packaging data |
|---|
| Mounting kit |
Yes |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 40 °C |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
