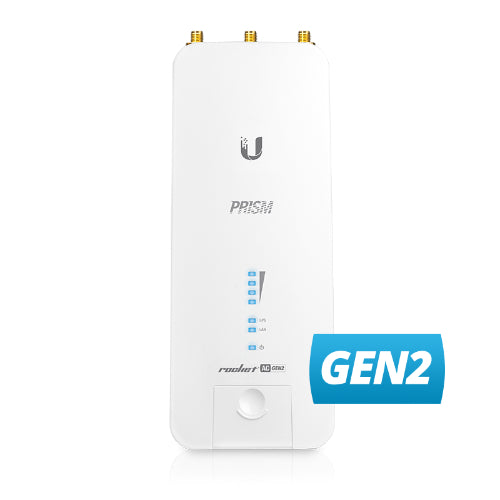

Ubiquiti RP-5AC-Gen2 White Power over Ethernet (PoE)

RP-5AC-Gen2, 10/100/1000 Ethernet Port, Die‑Cast Aluminum with White Powder Coating, 128 MB DDR2 SDRAM

Description

Management Wi-Fi Radio

The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The Rocket® Prism AC features enhanced protection against ESD events.

GPS Synchronization

The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Revolutionary Filtering Technology

Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

Designed for High Performance

The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

Full-Band 5 and 2.4 GHz Coverage

The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.

Specifications

Performance
5 GHz	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Quality of Service (QoS) support	Yes
Certification	FCC, IC, CE
Internal memory	128 MB
Built-in processor	Yes
Features
5 GHz	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Quality of Service (QoS) support	Yes
Internal memory	128 MB
Built-in processor	Yes
Security
Security algorithms	WPA2-AES
Protocols
DHCP client	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	9.5 W
Input current	1 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
LED indicators	LAN, Power, Signal strength
Product colour	White
Certification	FCC, IC, CE
Antenna
Antenna connector type	RP-SMA
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	FCC, IC, CE
Weight & dimensions
Width	88 mm
Depth	40 mm
Height	230 mm
Weight	400 g
Packaging data
Bundled software	Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Packaging content
Bundled software	Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 80 °C
Logistics data
Harmonized System (HS) code	85176990
