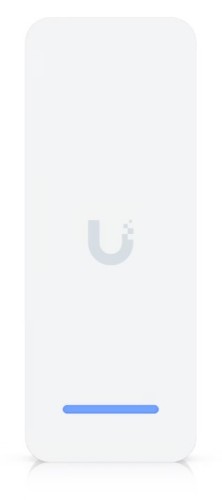

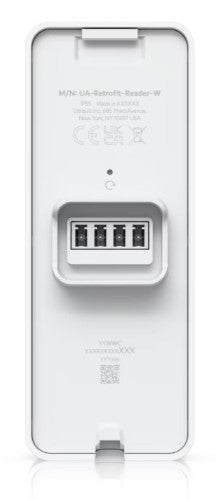

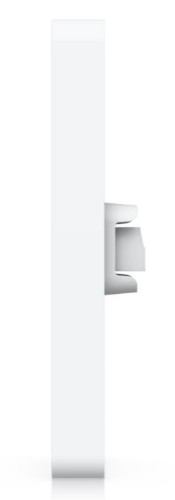

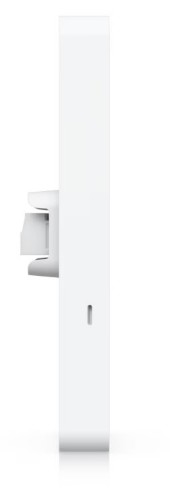

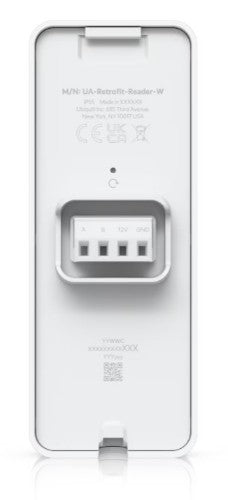

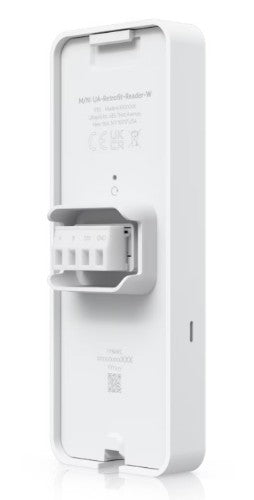

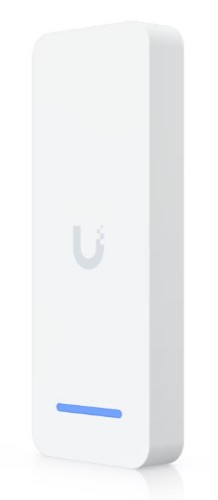

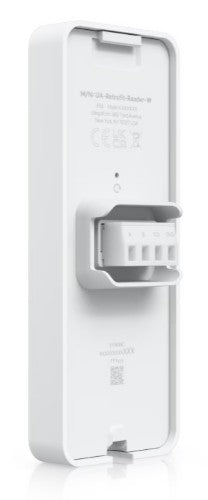

Ubiquiti Retrofit Reader Basic access control reader White

Ubiquiti

Ubiquiti Retrofit Reader Basic access control reader White

Read reviews
SKU: UA-RETROFIT-READER-W
Your price $398.75
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

BLE 4.1, RS-485, NFC 13.56 MHz, OSDP v2, 12V DC, -30 to 50° C, 5 to 90%, PC/Aluminum alloy, White, 117 x 45 x 13.3 mm, 82g

Description

Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.

Specifications

Technical details
Recommended usage Indoor & outdoor
Type Basic access control reader
Authentication type Access chip/card, Mobile app
Fingerprint reader No
Access code reader No
Access chip/card reader type Contactless
Access chip/card reader Yes
Product colour White
Housing material Aluminium, Polycarbonate (PC)
International Protection (IP) code IP55
Compatible products UniFi Retrofit Hub
Near Field Communication (NFC) Yes
LED indicators Yes
Wi-Fi No
Bluetooth version 4.1
Bluetooth Yes
Unlock function Yes
Open Supervised Device Protocol (OSDP) Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), UKCA
Display
Built-in display No
Camera
Front camera No
Performance
Built-in speaker(s) Yes
Ports & interfaces
RS-485 ports 1
PC connected No
Near Field Communication (NFC) Yes
Wi-Fi No
Bluetooth version 4.1
Bluetooth Yes
Power
DC voltage range 12 V
DC-in jack Yes
Power consumption (max) 2.5 W
Weight & dimensions
Width 45 mm
Weight 82 g
Height 117 mm
Depth 13.3 mm
Packaging content
Mounting bracket(s) included Yes
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Operating relative humidity (H-H) 5 - 90%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Brand
Ubiquiti
SKU
UA-RETROFIT-READER-W
