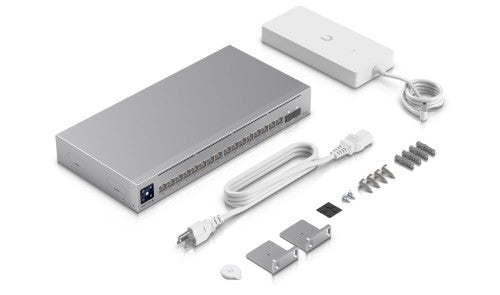

L3, 16x RJ-45, 2x SFP+, 84 Gbps switching capacity, AC/DC, PoE 180W
Key Features
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
Description
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Multicast support |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
12 |
| Power connector |
DC-in jack |
| 2.5G Ethernet (copper) ports quantity |
4 |
| Network |
|---|
| Networking standards |
IEEE 802.1x |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
Voice VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Switching capacity |
84 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
62.496 Mpps |
| Throughput |
42 Gbit/s |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP snooping, DHCPv6 relay |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Reset button |
Yes |
| Rack mounting |
Yes |
| Display type |
LCM |
| Product colour |
Grey |
| LED indicators |
System |
| Housing material |
Steel |
| Power |
|---|
| Power consumption (max) |
30 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Redundant power supply (RPS) support |
Yes |
| DC input voltage |
44 - 57 V |
| Power source |
AC/DC |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
15 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
12 |
| Total Power over Ethernet (PoE) budget |
180 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
4 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
Voice VLAN |
| Weight & dimensions |
|---|
| Width |
325.1 mm |
| Depth |
160 mm |
| Height |
43.7 mm |
| Weight |
2.1 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
Power |
| Mounting brackets included |
Yes |
| Packaging data |
|---|
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Cables included |
Power |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
