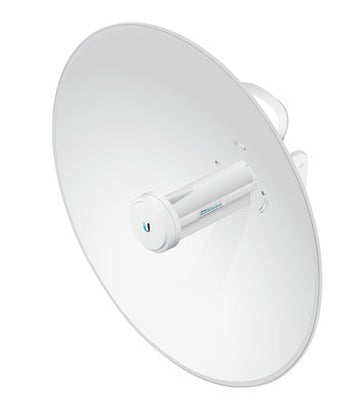

Ubiquiti PowerBeam ACGen2 450 Mbit/s White

450+Mbps, 5GHz, 25+km, 25dBi, Passive PoE, 64MB, 8.5W, 420 x 420 x 230mm. 2.22kg

Description

High-Performance airMAX® ac Bridge
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

Management Wi-Fi Radio
The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation
The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Data transmission
Maximum data transfer rate	450 Mbit/s
Antenna
Antenna gain level (max)	25 dBi
Wireless LAN features
Frequency band	5 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Antenna gain level (max)	25 dBi
Network
Ethernet LAN	Yes
Frequency band	5 GHz
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Power, Signal strength
Internal memory	64 MB
Product colour	White
Power
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 158 °F
Management features
LED indicators	Power, Signal strength
Certificates
Certification	RoHS, CE, FCC, IC
Technical details
Operating temperature (T-T)	-40 - 158 °F
Internal memory	64 MB
Product colour	White
Harmonized System (HS) code	85176990
Weight & dimensions
Weight	2.22 kg
Dimensions (WxDxH)	420 x 230 x 420 mm
Logistics data
Harmonized System (HS) code	85176990
