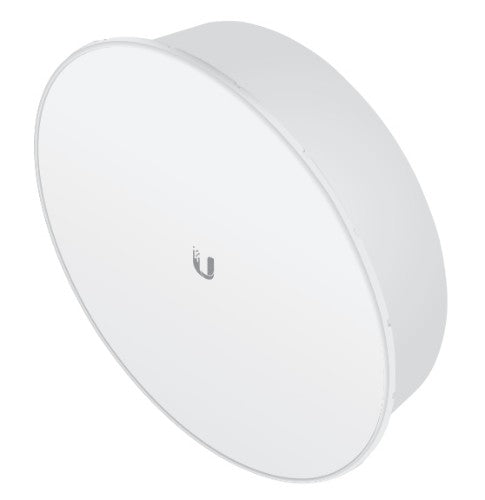

Ubiquiti PowerBeam AC ISO Gen2 Network bridge 450 Mbit/s White

450+Mbps, 5GHz, 25+km, 25dBi, PoE, 64MB, 8.5W

Description

5 GHz airMAX® ac Bridge with RF Isolated Reflector
Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam® ac ISO is ideal for deployments requiring maximum performance and RF isolation.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Innovative Mechanical Design
The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

Superior RF Isolation
Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Specifications

Data transmission
Maximum data transfer rate	450 Mbit/s
Antenna
Antenna gain level (max)	25 dBi
Wireless LAN features
Frequency band	5.150 - 5.850 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Antenna gain level (max)	25 dBi
Network
Ethernet LAN	Yes
Frequency band	5.150 - 5.850 GHz
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Features
Product type	Network bridge
Processor model	MIPS 74Kc
Surge protection	Yes
Quality of Service (QoS) support	Yes
Material	Metal
LED indicators	LAN, Power, Signal strength
Internal memory	64 MB
Product colour	White
Power
Power consumption (max)	8.5 W
Power source type	PoE
DC input voltage	20 - 26 V
Power consumption (24V)	500 mA
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 158 °F
Management features
LED indicators	LAN, Power, Signal strength
Certificates
Certification	RoHS, CE, FCC, IC
Technical details
Operating temperature (T-T)	-40 - 158 °F
Material	Metal
Internal memory	64 MB
Product colour	White
Harmonized System (HS) code	85176990
Weight & dimensions
Weight	3.22 kg
Dimensions (WxDxH)	459 x 261 x 459 mm
Processor
Processor model	MIPS 74Kc
Logistics data
Harmonized System (HS) code	85176990
