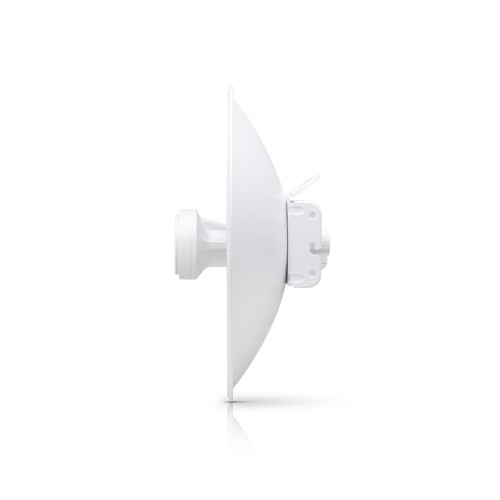

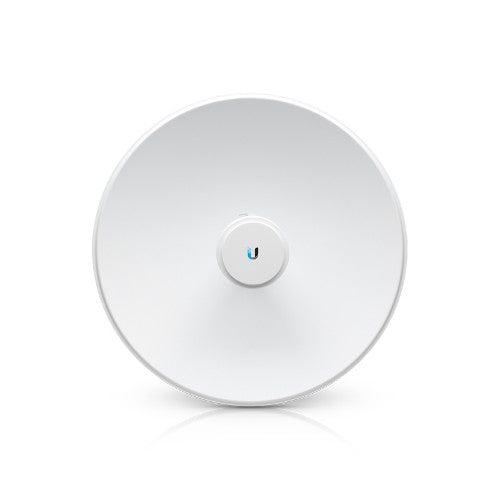

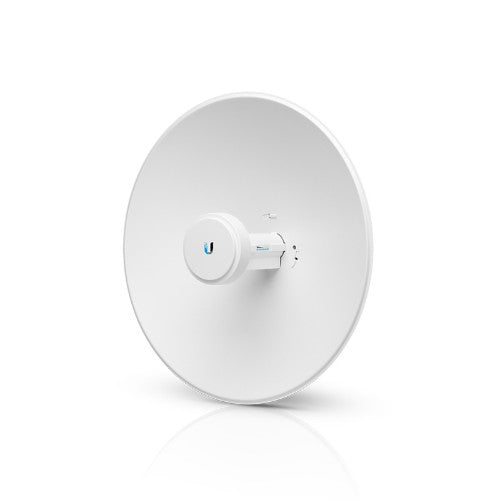

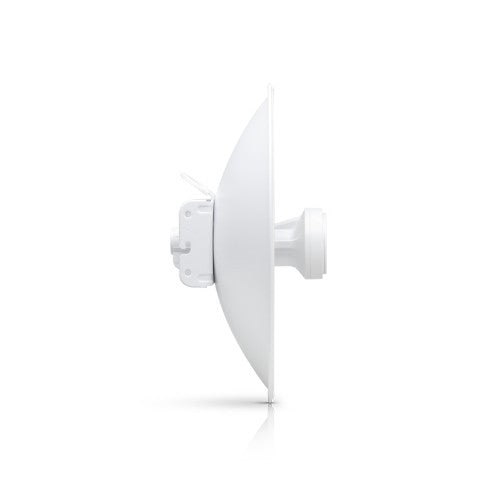

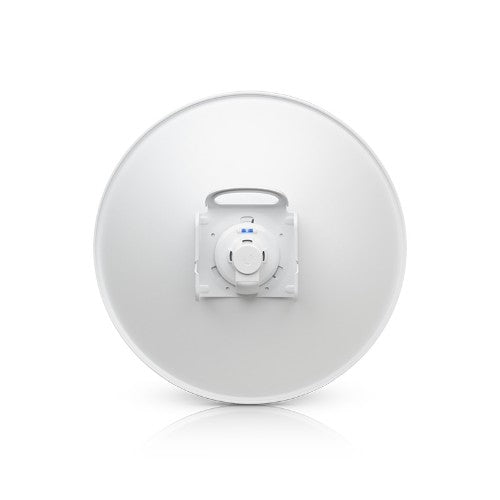

Ubiquiti PowerBeam 2AC network antenna Directional antenna 18 dBi

2.4 GHz, 330+ Mbps, 20+ km, 18 dBi

Description

High-Performance airMAX® ac Bridge
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

Management Wi-Fi Radio
The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation
The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Performance
Built-in processor	Yes
Processor model	Atheros MIPS 74Kc
Internal memory	64 MB
Antenna gain level (max)	18 dBi
Frequency band	2.4 GHz
Modulation	16-QAM, 256-QAM, BPSK, QPSK
Antenna gain (2.4 GHz)	18 dBi
Cabling technology	10/100/1000Base-T(X)
Features
Ultraviolet (UV) resistant	Yes
Survival wind speed	200 km/h
Housing material	Plastic
Wind load	342.5
Antenna type	Directional antenna
Purpose	Outdoor
Mounting	Pole
Maximum operating distance	20000 m
Product colour	White
Antenna gain level (max)	18 dBi
Frequency band	2.4 GHz
Modulation	16-QAM, 256-QAM, BPSK, QPSK
Antenna gain (2.4 GHz)	18 dBi
Certification	CE, FCC, IC, ETSI300-019-1.4
Power
Power source type	PoE
Power consumption (max)	7.5 W
Input voltage	22 - 26 V
Certificates
Certification	CE, FCC, IC, ETSI300-019-1.4
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	1.79 kg
Depth	289 mm
Diameter	42 cm
Technical details
Harmonized System (HS) code	85177100
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Mounting kit	Yes
Cables included	AC
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
