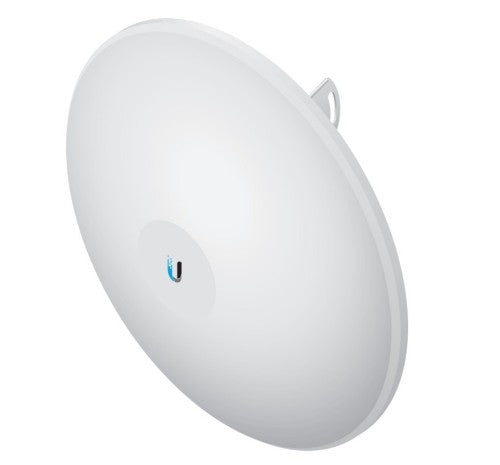

Ubiquiti PBE-5AC-500 network antenna Directional antenna 27 dBi

PBE-5AC-500 - 5GHz, 27dBi, 500mm

Description

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Protective Radome
The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.

Specifications

Performance
Built-in processor	Yes
Processor model	Atheros MIPS 74Kc
Processor frequency	720 MHz
Internal memory type	DDR2
Internal memory	128 MB
Flash memory	16 MB
Antenna gain level (max)	27 dBi
Frequency band	5 GHz
Features
Survival wind speed	96 km/h
Wind load	264.6
LED indicators	LAN, Power, WLAN
Antenna gain level (max)	27 dBi
Frequency band	5 GHz
Antenna type	Directional antenna
Voltage Standing Wave Ratio (VSWR)	1.5:1
Polarization	Dual polarization
Mounting	Pole
Product colour	White
Certification	FCC, IC, CE
Power
Power consumption (max)	8.5 W
Technical details
Harmonized System (HS) code	85177100
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	3.15 kg
Width	525 mm
Depth	315 mm
Height	525 mm
Logistics data
Harmonized System (HS) code	85177100
Other features
Dimensions (WxDxH)	620 x 620 x 386 mm
