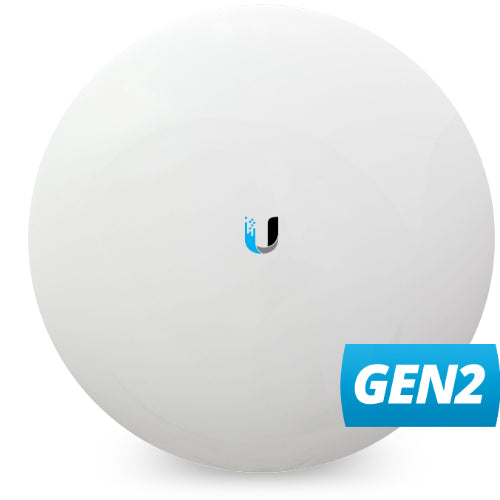

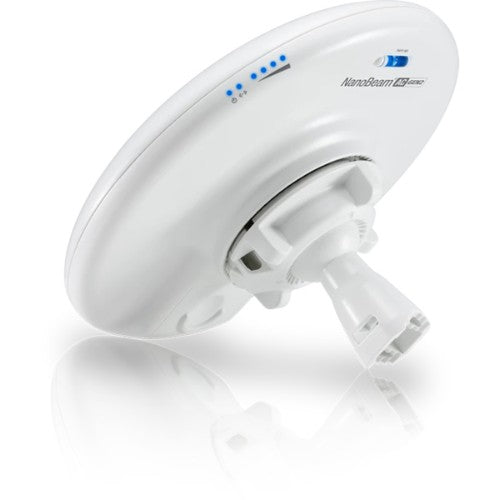

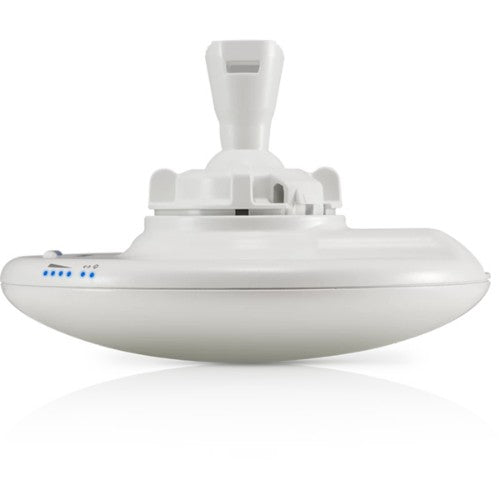

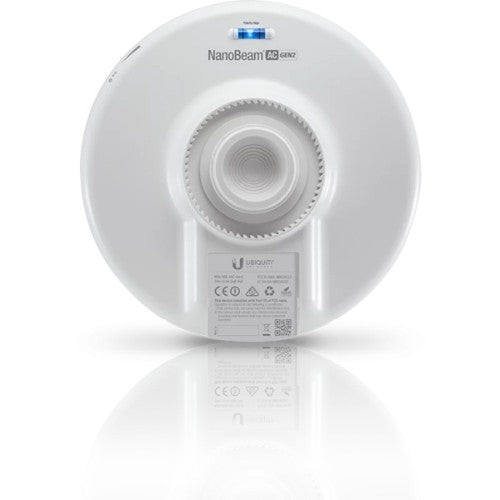

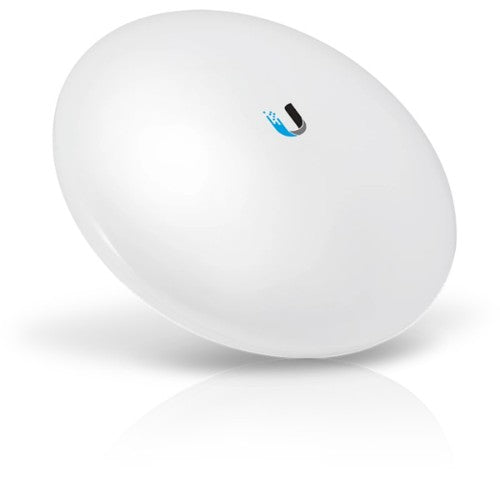

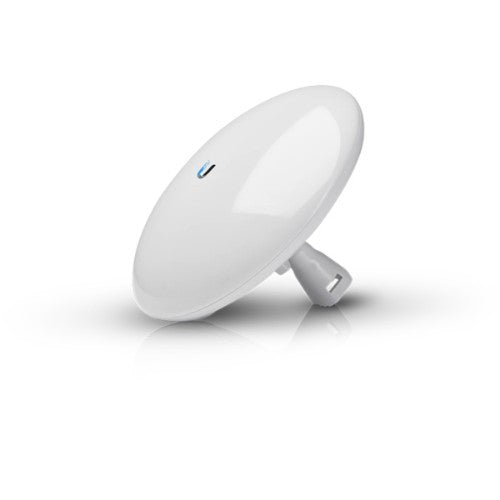

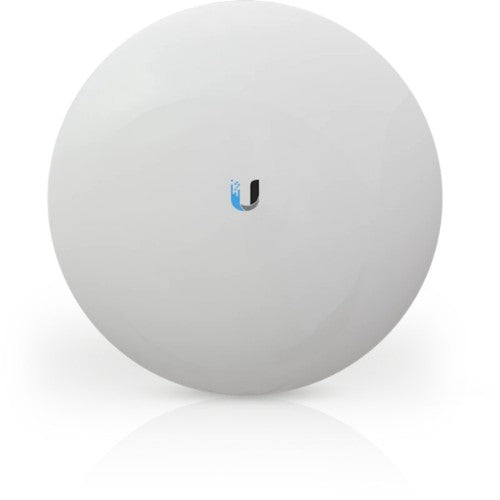

Ubiquiti NBE-5AC-GEN2-AU bridge/repeater Network bridge 450 Mbit/s White

Ubiquiti

Ubiquiti NBE-5AC-GEN2-AU bridge/repeater Network bridge 450 Mbit/s White

Read reviews
SKU: NBE-5AC-GEN2-AU
Your price $234.63
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

NanoBeam AC 19dBi 5GHz 802.11ac, Gen2, 450+ Mbps, Range 15+ km

Key Features

  • New antenna
  • Improved radio design
  • Improved surge protection
  • Management WiFi Radio/UNMS mobile app
  • AirOS 8

Description

NanoBeam 5AC 2nd Generation 19dBi High-Performance airMAX Bridge

Incorporating innovative industrial design with proprietary airMAX AC technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint. The updated version has all the benefits of the old NBE-5AC-19, but also includes a Management Wi-Fi Radio and increased surge protection.

Management Wi-Fi Radio

The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The NanoBeam AC features enhanced protection against ESD events.

(PoE Included).

Specifications

Data transmission
Maximum data transfer rate 450 Mbit/s
Maximum transfer distance 15000 m
Antenna
Antennas quantity 1
Antenna gain level (max) 19 dBi
Antenna design External
Wireless LAN features
Antenna gain level (max) 19 dBi
Wi-Fi Yes
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Output power (dBm) 25 dBm
Network
Networking standards IEEE 802.11ac, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN interface type Gigabit Ethernet
Ports & interfaces
Ethernet LAN Yes
Connectivity technology Wired & Wireless

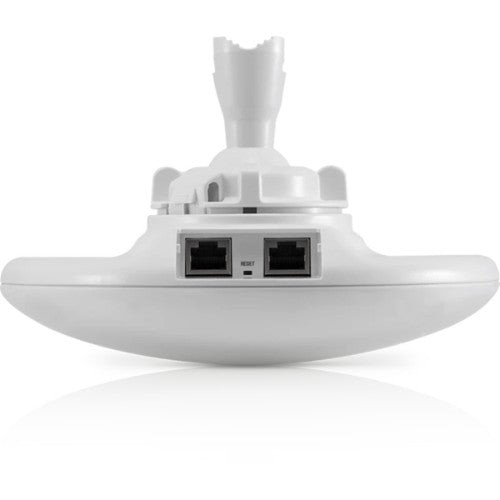

Ethernet LAN (RJ-45) ports 2
Cabling technology 10/100/1000Base-T(X)
Features
Product type Network bridge
Reset button Yes
Processor family Atheros
Processor model MIPS 74Kc
RAM type DDR2
Processor frequency 720 MHz
Rack mounting No
Material Plastic
LED indicators LAN, Power, Signal strength
Internal memory 128 MB
Product colour White
Processor manufacturer Qualcomm
Mounting type Wall/Pole
Power
Power source type PoE
DC input voltage 24 V
Power over Ethernet (PoE) Yes
Power consumption (typical) 8.5 W
Power over Ethernet (PoE) voltage 24 V
Operational conditions
Operating temperature (T-T) -40 - 80 °C
Operating relative humidity (H-H) 5 - 95%
Management features
LED indicators LAN, Power, Signal strength
Certificates
Certification CE, FCC, IC IEC 68-2-6 IEC 68-2-14 IEC 68-2-11 IEC 68-2-5 ETS 300 019-1-4
Compliance certificates RoHS
Technical details
Rack mounting No
Material Plastic
Internal memory 128 MB
Product colour White
Sustainability compliance Yes
Compliance certificates RoHS
Weight & dimensions
Weight 530 g
Width 189 mm
Depth 125 mm
Height 189 mm
Processor
Processor family Atheros
Processor model MIPS 74Kc
Processor frequency 720 MHz
Processor manufacturer Qualcomm
Memory
Flash memory 8 MB
RAM type DDR2
Packaging content
Antenna included Yes
Sustainability
Sustainability compliance Yes
Brand
Ubiquiti
SKU
NBE-5AC-GEN2-AU
