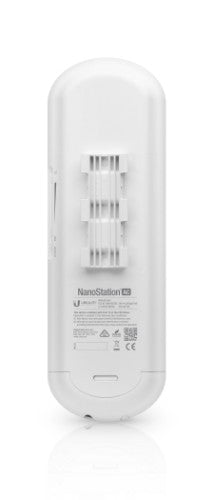

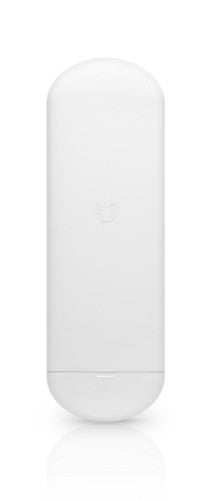

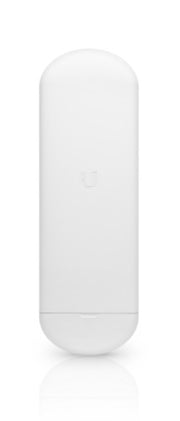

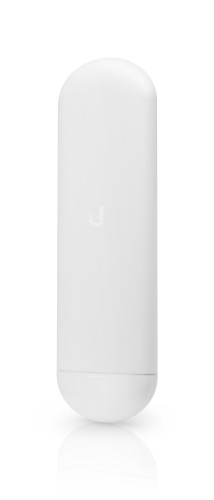

Ubiquiti NanoStation AC 1000 Mbit/s White Power over Ethernet (PoE)

NanoStation AC, 5 GHz airMAX ac Radio, (2) 10/100/1000 Mbps Ethernet Ports, Atheros MIPS 74Kc, 560 MHz, 64 MB DDR2

Description

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

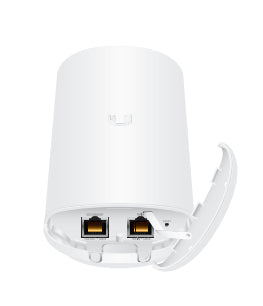

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Performance
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Maximum outdoor range	15000 m
Channel bandwidth	80 MHz
Certification	CE, FCC, IC
Operating system installed	AirOS
Internal memory	64 MB
Built-in processor	Yes
Features
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Maximum outdoor range	15000 m
Channel bandwidth	80 MHz
Throughput data rate	450 Mbit/s
Operating system installed	AirOS
Internal memory	64 MB
Built-in processor	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Input current	0.5 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
Placement	Ceiling
Product colour	White
Certification	CE, FCC, IC
Antenna
Antenna type	Internal
Antenna gain level (max)	16 dBi
Weight & dimensions
Width	257 mm
Depth	84 mm
Height	41 mm
Weight	233 g
Packaging data
PoE adapter included	Yes
Packaging content
PoE adapter included	Yes
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
