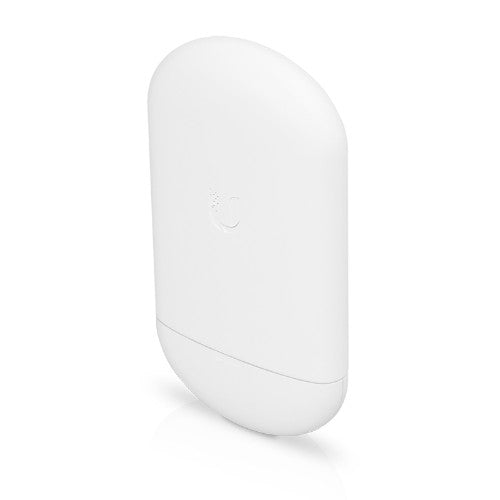

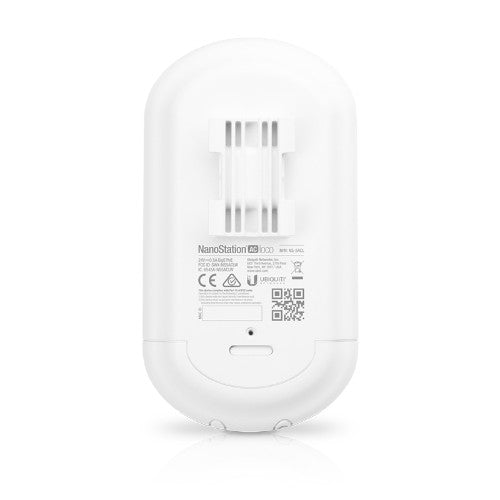

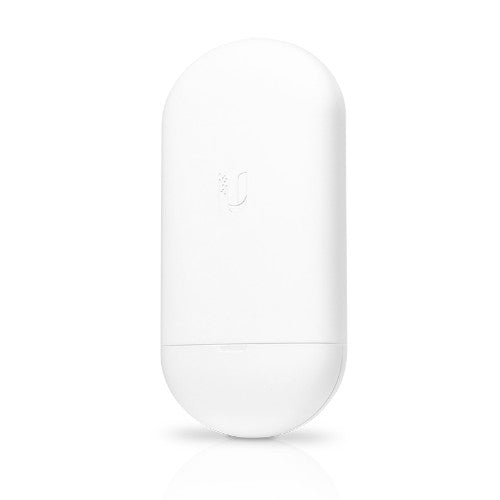

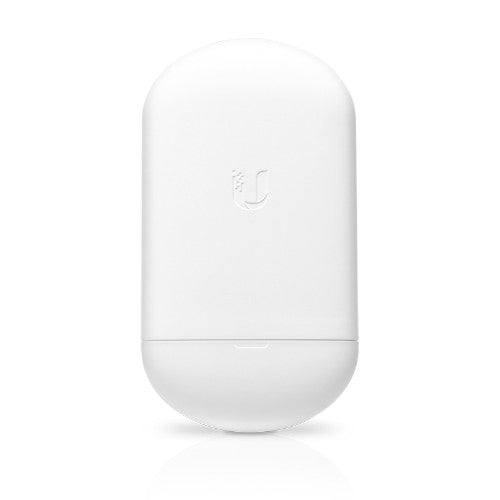

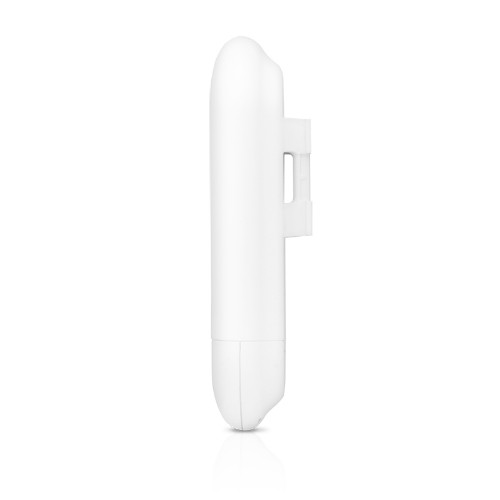

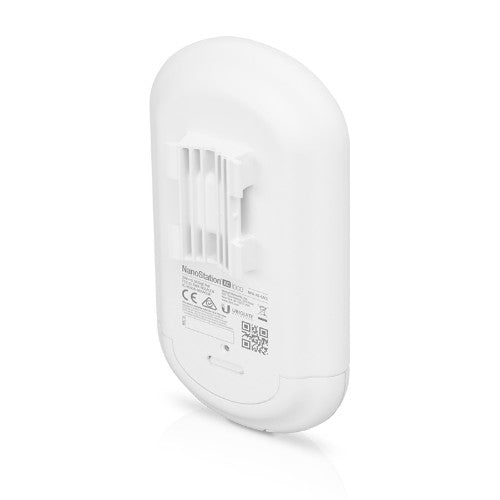

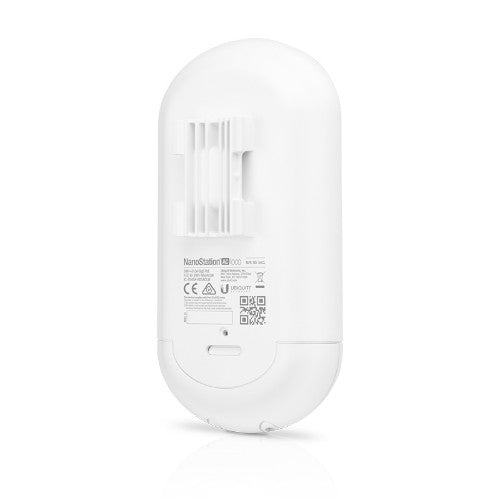

Ubiquiti NanoStation 5AC Loco 450 Mbit/s White Power over Ethernet (PoE)

NanoStation 5AC Loco, 5 GHz, 450+ Mbps, 10+ km, MIPS 74K, 64 MB, 10/100/1000 Mbps Ethernet Port, 24V, 0.3A Gigabit PoE Supply (Not Included), 7.05 x 3.05 x 2.33", 5pcs

Key Features

• New antenna
• Improved design
• Management WiFi Radio/UNMS mobile app
• AirOS 8

Description

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Performance
5 GHz	Yes
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	5 GHz
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Maximum outdoor range	10000 m
Certification	CE, FCC, IC
MIMO	Yes
Operating system installed	AirOS
Internal memory	64 MB
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Features
5 GHz	Yes
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	5 GHz
Quality of Service (QoS) support	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Maximum outdoor range	10000 m
MIMO	Yes
Operating system installed	AirOS
Internal memory	64 MB
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Security
Security algorithms	WPA2
Management features
Web-based management	Yes
Ports & interfaces

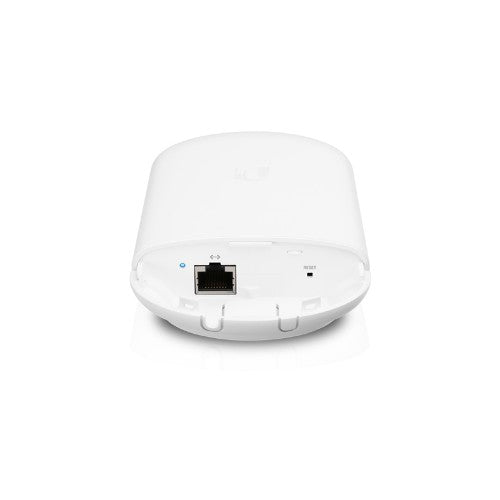

Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	7 W
Input current	0.3 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
Placement	Pole
Housing material	Plastic
Reset button	Yes
LED indicators	Power
Product colour	White
Certification	CE, FCC, IC
Antenna
Antenna type	Internal
Polarization	Dual polarization
Antenna gain level (max)	13 dBi
Antenna features	Integrated antenna
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
Other features
Polarization	Dual polarization
Logistics data
Quantity per pack	5 pc(s)
