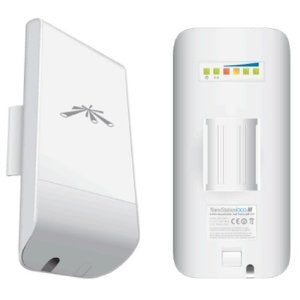

Ubiquiti LOCOM2-AU network extender Network transmitter & receiver White 10, 100 Mbit/s

airMAX Nanostation LOCO M 2.4GHz Indoor/Outdoor CPE, Point-to-Multipoint application

Description

The original NanoStation set the bar for the world’s first low-cost and efficiently designed outdoor broadband CPE. The NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2×2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. Easily mountable to a pole/mast with mounting straps provided. In addition, the LocoStation can be mounted and adjusted in any direction in a 90-degree angle through the use the NanoBracket. The NanoBracket is sold separately.

Specifications

Performance
Ethernet LAN data rates	10,100 Mbit/s
Type	Network transmitter & receiver
Maximum transfer distance	15000 m
Power over Ethernet (PoE)	Yes
Data transfer rate	300 Mbit/s
Technical details
Mounting type	Pole
Ethernet LAN data rates	10,100 Mbit/s
Type	Network transmitter & receiver
Maximum transfer distance	15000 m
Power over Ethernet (PoE)	Yes
Data transfer rate	300 Mbit/s
Antenna gain level (max)	8 dBi
Compliance certificates	RoHS
Antenna
Antenna type	Internal
Antenna gain level (max)	8 dBi
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, WPA, WPA2
Wi-Fi band	Single-band (2.4 GHz)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Housing material	Plastic
Mounting type	Pole
Certification	FCC Part 15.247, IC RS210, CE ETSI300-019-1.4
Product colour	White
Rack mounting	No
Power
Power consumption (max)	5.5 W
Power over Ethernet (PoE)	Yes
Output voltage	24 V
Output current	0.5 A
Operational conditions
Storage temperature (receiver)	5 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
Weight & dimensions
Width	80 mm
Depth	31 mm
Height	163 mm
Weight	180 g
Colour
Product colour	White
Certificates
Certification	FCC Part 15.247, IC RS210, CE ETSI300-019-1.4
Memory
Internal memory	32 MB
Flash memory	8 MB
