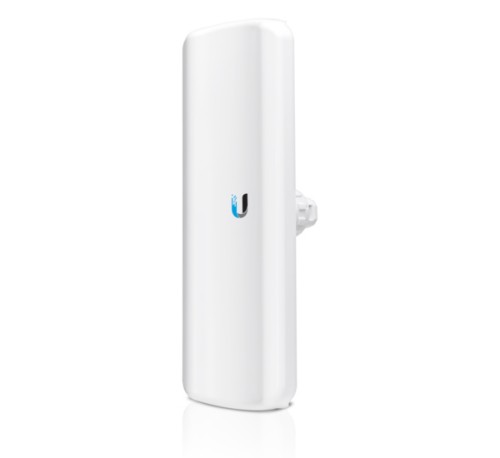

Ubiquiti LAP-GPS network antenna MIMO directional antenna 17 dBi

5 GHz, 450+ Mbps, 10/100/1000 Ethernet Port, 17 dBi, DDR2 64MB, Management Radio, GPS Sync

Description

2x2 MIMO airMAX® ac Sector AP
The LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.

Models: LAP‑120, LAP‑GPS

Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.

GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Now with airOS®
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Specifications

Performance
Bandwidth note	5150 - 5875 MHz
Built-in processor	Yes
Processor model	Atheros MIPS 74Kc
Processor frequency	533 MHz
Internal memory type	DDR2
Internal memory	64 MB
Antenna gain level (max)	17 dBi
Frequency band	5 GHz
Cabling technology	10/100/1000Base-T(X)
Features
Antenna gain level (max)	17 dBi
Frequency band	5 GHz
Antenna type	MIMO directional antenna
Mounting	Pole
Product colour	White
Certification	FCC, IC, CE
Power
Power source type	AC, PoE
Power consumption (max)	7.1 W
Input voltage	24 V
Technical details
Harmonized System (HS) code	85177100
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	752 g
Width	124.6 mm
Depth	71.3 mm
Height	361 mm
Packaging content
Quick installation guide	Yes
Mounting kit	Yes
Cables included	AC
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
