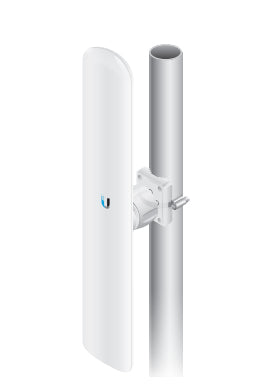

Ubiquiti LAP-120 network antenna MIMO directional antenna 16 dBi

5 GHz, 450+ Mbps, 10/100/1000 Ethernet Port, 16 dBi

Description

2x2 MIMO airMAX ac Sector AP
The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.

airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.

GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Specifications

Performance
Bandwidth note	5150 - 5875 MHz
Built-in processor	Yes
Processor model	Atheros MIPS 74Kc
Processor frequency	533 MHz
Internal memory	64 MB
Antenna gain level (max)	16 dBi
Frequency band	5 GHz
Cabling technology	10/100/1000Base-T(X)
Features
Antenna type	MIMO directional antenna
Mounting	Pole
Product colour	White
Antenna gain level (max)	16 dBi
Frequency band	5 GHz
Certification	FCC, IC, CE
Power
Power source type	PoE
Power consumption (max)	7 W
Certificates
Certification	FCC, IC, CE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	420 g
Width	78.7 mm
Depth	54.4 mm
Height	452.3 mm
Technical details
Harmonized System (HS) code	85177100
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Mounting kit	Yes
Cables included	AC
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
