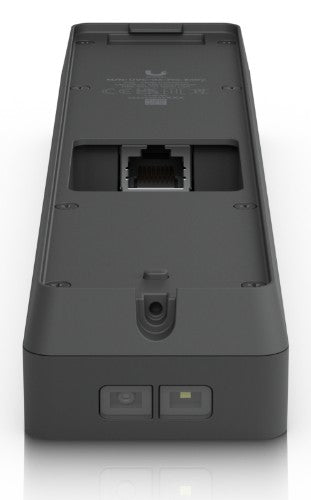

G6 Pro Entry, 12MP/8MP CMOS, 3" touch display, two-way audio, IP55, IK07 LCM IK04, BLE 4.1, NFC
Description
An intelligent door entry system with native UniFi Protect and UniFi Access integration with a 12MP camera, two-way audio, and a 3" touch display.
Specifications
| Technical details |
|---|
| Built-in processor |
Yes |
| Recommended usage |
Outdoor |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Type |
Intelligent access control reader |
| Authentication type |
Biometric, Access chip/card, Mobile app, Face recognition, Password |
| Fingerprint reader |
No |
| Access code reader |
No |
| Access chip/card reader |
Yes |
| Product colour |
Black |
| Housing material |
Aluminium |
| International Protection (IP) code |
IP55 |
| Near Field Communication (NFC) |
Yes |
| Buzzer |
Yes |
| LED indicators |
Status |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| IK code |
IK07 |
| Tamper protection |
Yes |
| Noise reduction |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Display |
|---|
| Touchscreen |
Yes |
| Display type |
LCM |
| Display diagonal |
7.62 cm (3") |
| Built-in display |
Yes |
| Maximum resolution |
480 x 854 pixels |
| Screen shape |
Flat |
| Brightness adjustment |
Yes |
| Touchscreen technology |
Capacitive |
| Camera |
|---|
| Sensor type |
CMOS |
| Total megapixels |
12 MP |
| Maximum image resolution |
3024 x 4096 pixels |
| Front camera |
Yes |
| Front camera type |
Single camera |
| Number of lenses |
1 |
| Number of cameras |
1 |
| Infrared (IR) light |
Yes |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A53 |
| Processor cores |
4 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Near Field Communication (NFC) |
Yes |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
1 |
| DC voltage range |
42 - 57 V |
| Power consumption (max) |
18 W |
| Weight & dimensions |
|---|
| Width |
49.3 mm |
| Weight |
360 g |
| Height |
220 mm |
| Depth |
29.6 mm |
| Packaging content |
|---|
| Mounting bracket(s) included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Total megapixels |
12 MP |
| Maximum image resolution |
3024 x 4096 pixels |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
1 |
