1/1.6" 12MP 3504 x 3504 (1:1), Fisheye lens, IR LED illumination and IR cut filter, IP66, IK10, MicroSD card, 10/100 MbE RJ45 port, PoE+
Description

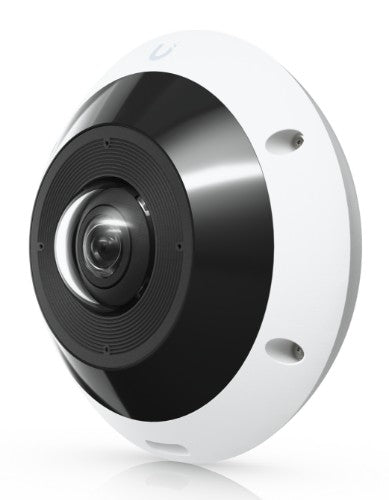

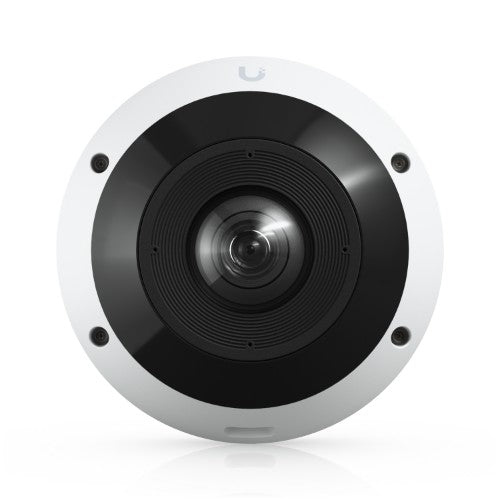

All-weather, vandal-resistant 12MP PoE camera with panoramic 360° coverage, digital pan-tilt-zoom functionality, and smart IR functionality.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter |
Yes |
| Processor model |
ARM Cortex-A53 |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Day/night mode |
Yes |
| Built-in processor |
Yes |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK10 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Protection features |
Vandal proof, Weatherproof |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Lens viewing angle, horizontal |
180° |
| Lens viewing angle, vertical |
180° |
| Lens viewing angle, diagonal |
180° |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 1.6 mm (1 / 1.6") |
| Lens system |
|---|
| Number of lenses |
1 |
| Zoom capability |
Yes |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
15 m |
| LED type |
IR |
| Video |
|---|
| Noise reduction |
Yes |
| Image quality adjustment |
Brightness, Colour depth, Contrast, HDR, Sharpness |
| Text caption overlay |
Yes |
| Privacy masking |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Maximum resolution |
3504 x 3504 pixels |
| Frame rate |
24 fps |
| Total megapixels |
12 MP |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Audio system |
2-way |
| Number of microphones |
2 |
| Network |
|---|
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Security |
|---|
| Intelligent Video Surveillance (IVS) system features |
Human detection, Pet detection, Vehicle detection |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power source type |
PoE+ |
| Power consumption (max) |
7.14 W |
| DC output voltage |
37, 42.5, 48, 54, 57 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Height |
65.5 mm |
| Diameter |
14.7 cm |
| Weight |
610 g |
| Sustainability |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging content |
|---|
| Number of cameras |
1 |
| Screws included |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Night mode |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
