Bullet, 8 MP, 4K, RJ-45, IP66/IK04, PoE
Description
All-weather 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPs AI Engine, and long-range IR night vision.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter |
Yes |
| Processor model |
ARM Cortex-A53 |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Built-in processor |
Yes |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK04 |
| Form factor |
Bullet |
| Product colour |
White |
| Mounting type |

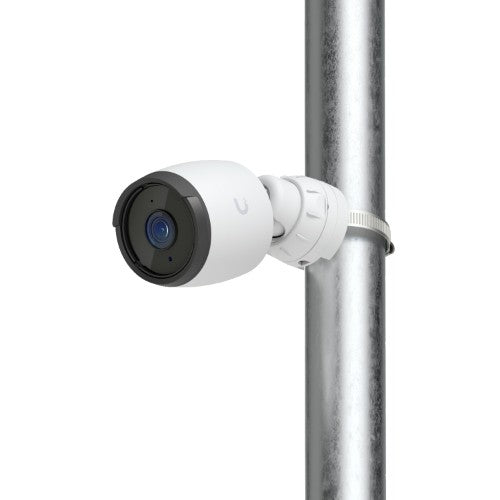

Ceiling/Wall/Pole |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Lens viewing angle, horizontal |
109.9° |
| Lens viewing angle, vertical |
56.7° |
| Lens viewing angle, diagonal |
134.1° |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
30 m |
| LED type |
IR |
| Video |
|---|
| Noise reduction |
Yes |
| Image quality adjustment |
Brightness, Contrast, HDR, Sharpness |
| Text caption overlay |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Maximum resolution |
3840 x 2160 pixels |
| Frame rate |
30 fps |
| Total megapixels |
8 MP |
| Audio |
|---|
| Built-in microphone |
Yes |
| Network |
|---|
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Built-in HDD |
No |
| Ports & interfaces |
|---|

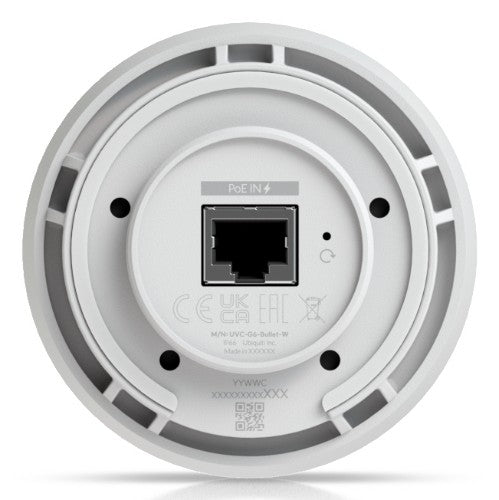

| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Security |
|---|
| Human and vehicle targets classification |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
9.9 W |
| DC output voltage |
37, 42.5, 48, 54, 57 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Height |
88.8 mm |
| Diameter |
8.2 cm |
| Weight |
587 g |
| Sustainability |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging content |
|---|
| Number of cameras |
1 |
| Screws included |
Yes |

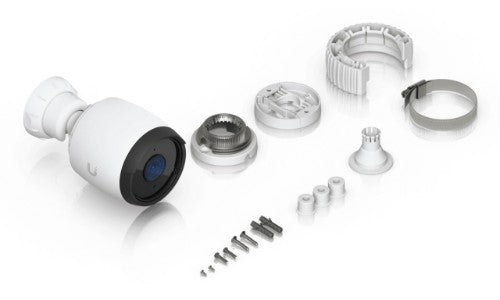

| Mounting kit |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
