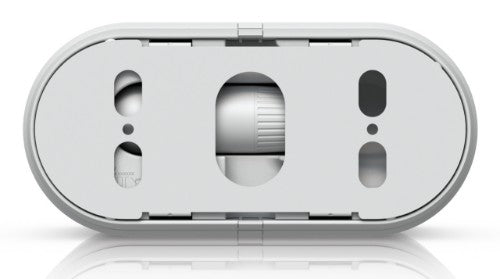

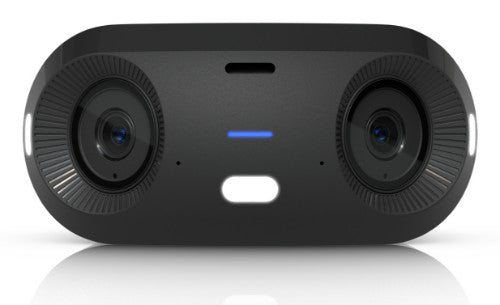

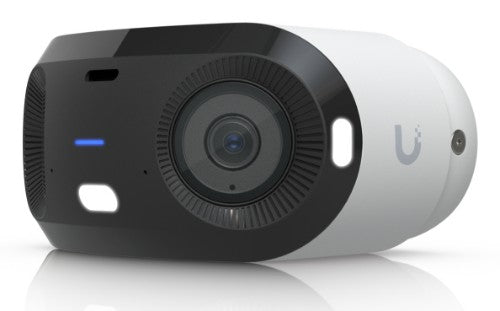

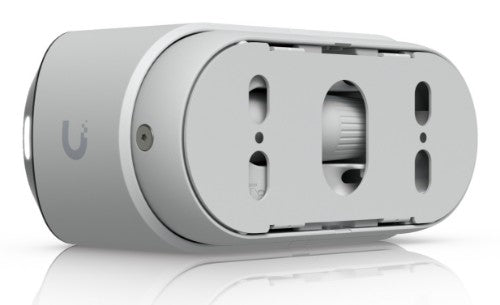

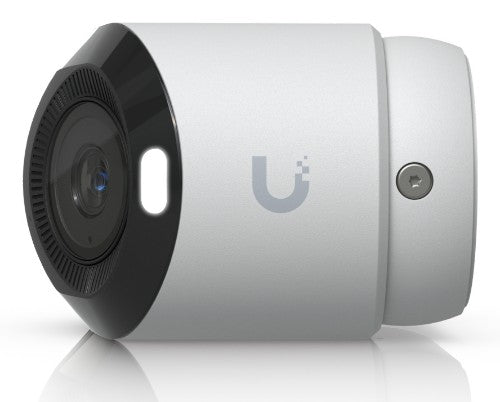

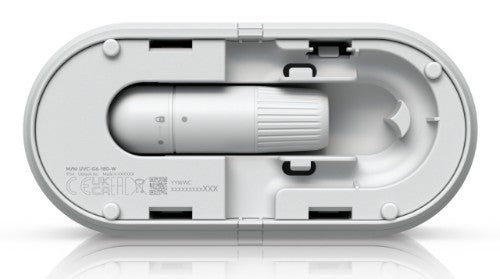

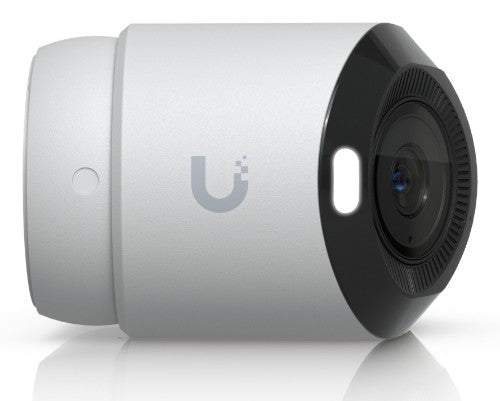

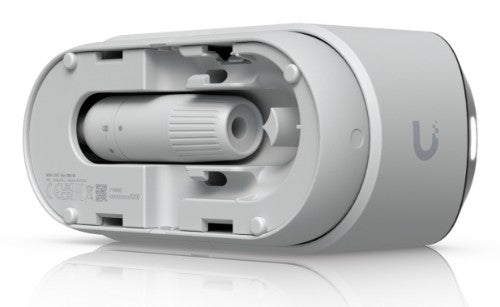

Indoor/outdoor, 16 MP 7680 x 2160 (3.5:1), 4K, panoramic 180°, IP66, IK04, PoE+, white
Description
Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180° coverage.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter |
Yes |
| Processor model |
ARM Cortex-A53 |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Day/night mode |
Yes |
| Built-in processor |
Yes |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK04 |
| Product colour |
White |
| Mounting type |
Ceiling/Wall/Pole |
| Protection features |
Tamper resistant, Weatherproof |
| LED indicators |
Yes |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Lens viewing angle, horizontal |
180° |
| Lens viewing angle, vertical |
56.7° |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
2 |
| Lens system |
|---|
| Number of lenses |
2 |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
20 m |
| LED type |
IR |
| Video |
|---|
| Noise reduction |
Yes |
| Image quality adjustment |
Brightness, Contrast, HDR, Sharpness, White balance |
| Text caption overlay |
Yes |
| Privacy masking |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Maximum resolution |
7680 x 2160 pixels |
| Frame rate |
20 fps |
| Total megapixels |
16 MP |
| Video recording |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Audio system |
2-way |
| Network |
|---|
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Security |
|---|
| Human and vehicle targets classification |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power source type |
PoE+ |
| Power consumption (max) |
15 W |
| DC output voltage |
37, 42.5, 48, 54, 57 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Width |
136 mm |
| Depth |
64 mm |
| Height |
92 mm |
| Weight |
839 g |
| Features |
|---|
| License plate recognition |
Yes |
| Sustainability |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging content |
|---|
| Number of cameras |
1 |
| Mounting kit |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
