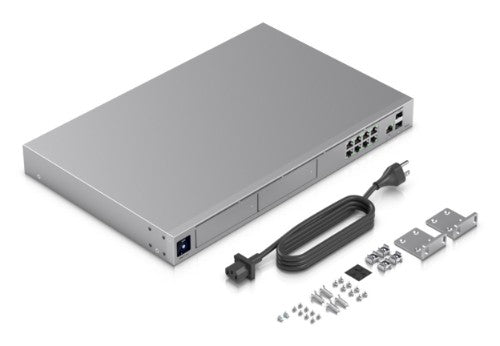

10 Gbps SFP+ LAN / WAN, 8x GbE RJ45 LAN, 2.5 GbE RJ45 WAN, 2x 3.5" NVR HDD bays, 128 GB SSD, 1.3" screen, Aluminium CNC, SGCC steel, EU
Key Features
- Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
- Includes full UniFi application suite for device management
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- (2) 3.5" NVR HDD bays with RAID data protection
- Built-in 128 GB SSD for NVR detection recordings
- 1.3" touchscreen
Description
Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
Specifications
| Design |
|---|
| LED indicators |
Activity, Error, Link, Ready |
| Mounting type |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Grey |
| Enclosure material |
Aluminium/SGCC |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Number of processors installed |
1 |
| Internal memory |
8000 MB |
| Flash memory |
32000 MB |
| Display type |
LCM |
| Control display unit |
Yes |
| Processor model |
Cortex-A57 |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| SSD capacity |
128 GB |
| Mounting type |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Grey |
| Enclosure material |
Aluminium/SGCC |
| Protocols |
|---|
| DHCP server |
Yes |
| Routing protocols |
OSPF, BGP |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Port aggregation |
Yes |
| Security |
|---|
| VLAN support |
Yes |
| Firewall security |
Yes |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45), SFP+ |
| Ethernet LAN (RJ-45) ports |
9 |
| SFP+ ports quantity |
2 |
| Management features |
|---|
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
No |
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Input current |
2 A |
| Heat dissipation |
205 BTU/h |
| DC input voltage |
12 V |
| Power consumption (max) |
60 W |
| Electrostatic Discharge (ESD) protection (air) |
15 kV |
| Electrostatic Discharge (ESD) protection (contact) |
8 kV |
| Electromagnetic (EMP) protection |
Yes |
| Electromagnetic (EMP) protection (air) |
15 kV |
| Electromagnetic (EMP) protection (contact) |
8 kV |
| Weight & dimensions |
|---|
| Weight |
4.7 kg |
| Width |
442.4 mm |
| Height |
43.7 mm |
| Depth |
285.6 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Number of processors installed |
1 |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Indication |
|---|
| LED indicators |
Activity, Error, Link, Ready |
| Memory |
|---|
| Internal memory |
8000 MB |
| Flash memory |
32000 MB |
| Display |
|---|
| Display type |
LCM |
| Control display unit |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Number of processors installed |
1 |
