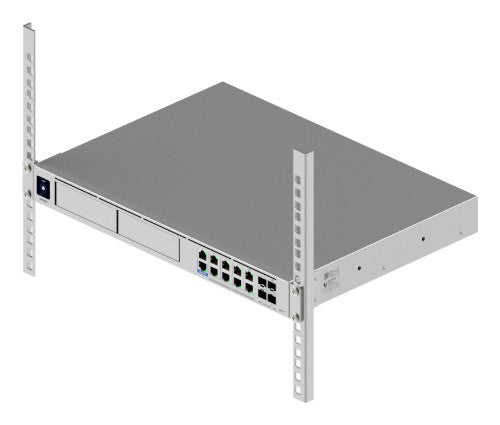

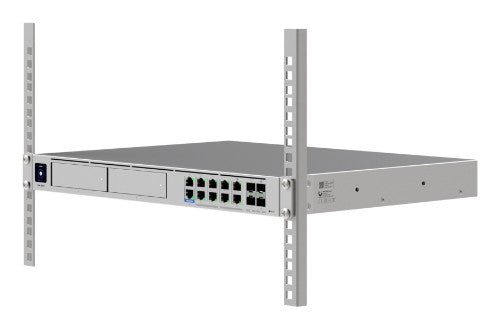

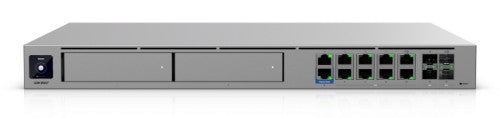

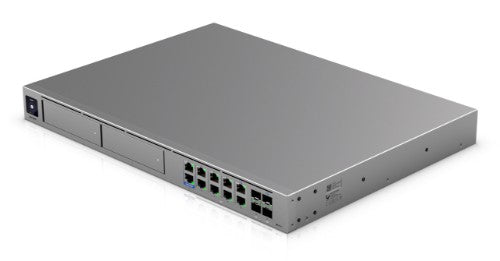

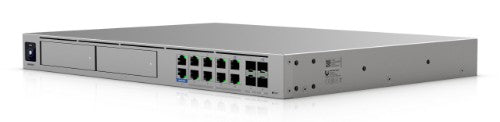

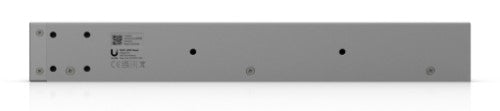

Ubiquiti Dream Machine Beast gateway/controller 10, 100, 1000, 2500, 10000, 5000 Mbit/s
SAVE 21%

Ubiquiti

Ubiquiti Dream Machine Beast gateway/controller 10, 100, 1000, 2500, 10000, 5000 Mbit/s

Read reviews
SKU: UDM-BEAST
Your price $2,988.85
List price $3,799.09 Save $810.23
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

25 Gbps IPS/IDS, 7,500+ client, 1U, (2) 3.5" NVR HDD bays, 342 BTU/hr, 100W

Description

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Specifications

Design
LED indicators Activity, Error, Link, Ready
Mounting type Rack mounting
Rack capacity 1U
Product colour Grey
Enclosure material Aluminium/SGCC
Performance
Built-in processor Yes
Processor frequency 2100 MHz
Number of processors installed 1
Internal memory 16000 MB
Display type LCM
Control display unit Yes
Processor manufacturer ARM
Processor family ARM Cortex
SSD capacity 128 GB
Mounting type Rack mounting
Rack capacity 1U
Product colour Grey
Enclosure material Aluminium/SGCC
Protocols
DHCP server Yes
Routing protocols BGP, OSPF
Network
Ethernet LAN data rates 10,100,1000,2500,10000,5000 Mbit/s
Port aggregation Yes
Security
Firewall security Yes
Network address translation (NAT) Yes
Ports & interfaces
WAN connection Ethernet (RJ-45), SFP+
Ethernet LAN (RJ-45) ports 10
Console port RJ-45
Number of console ports 1
SFP+ ports quantity 2
Management features
Reset button Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Power
Power over Ethernet (PoE) No
Input voltage 100 - 240 V
Input frequency 50/60 Hz
Input current 3 A
Heat dissipation 342 BTU/h
DC input voltage 12 V
Power consumption (max) 100 W
Electrostatic Discharge (ESD) protection (air) 8 kV
Electrostatic Discharge (ESD) protection (contact) 4 kV
Electromagnetic (EMP) protection Yes
Electromagnetic (EMP) protection (air) 8 kV
Electromagnetic (EMP) protection (contact) 4 kV
Weight & dimensions
Weight 5.5 kg
Width 442.4 mm
Height 43.7 mm
Depth 325 mm
Packaging content
Cables included AC
Operational conditions
Operating temperature (T-T) -10 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Built-in processor Yes
Processor frequency 2100 MHz
Number of processors installed 1
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Indication
LED indicators Activity, Error, Link, Ready
Memory
Internal memory 16000 MB
Display
Display type LCM
Control display unit Yes
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Features
Built-in processor Yes
Processor frequency 2100 MHz
Number of processors installed 1
Brand
Ubiquiti
SKU
UDM-BEAST
