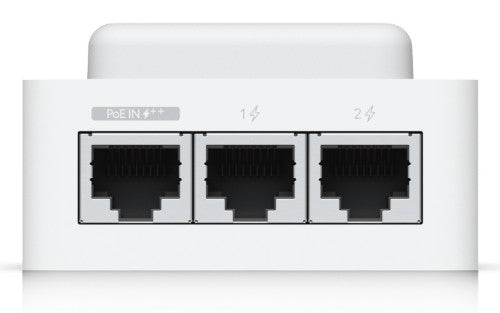

Ubiquiti Door Hub Mini security door controller 1 door(s) Ethernet

Ubiquiti

Ubiquiti Door Hub Mini security door controller 1 door(s) Ethernet

SKU: UA-HUB-DOOR-MINI
Your price $182.00
GST included · AUD

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Single door, 3x GbE RJ45, PoE++, polycarbonate, metal, 113 x 66 x 27.6 mm

Key Features

  • (1) Lock terminal (12V and Dry switchable)
  • (2) Additional inputs (sensor and button)
  • Connect and power via PoE++
  • Connect up to two UniFi Access Readers or Protect Cameras

Description

Compact Access Control Hub for a single door.

Specifications

Technical details
Maximum number of doors 1 door(s)
Interface Ethernet
Exit request Yes
LED indicators Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Performance
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Power
DC voltage range 50 V
Ports & interfaces
Ethernet LAN (RJ-45) ports 3
Operational conditions
Operating temperature (T-T) -10 - 40 °C
Operating relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 66 mm
Weight 190 g
Height 113 mm
Depth 27.6 mm
Brand
Ubiquiti
SKU
UA-HUB-DOOR-MINI
