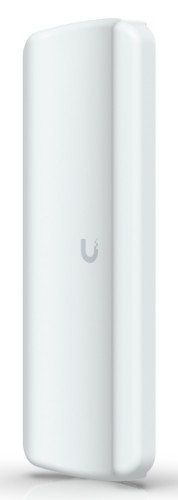

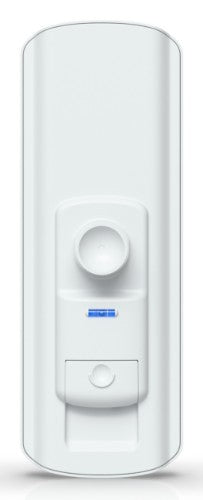

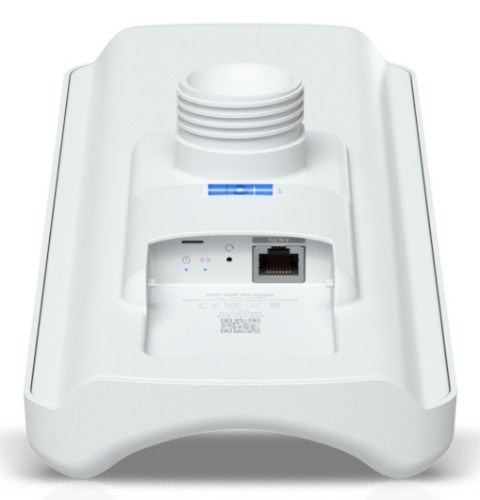

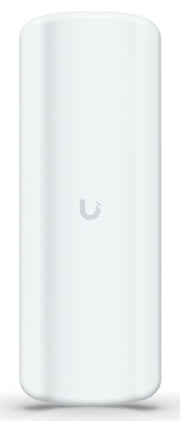

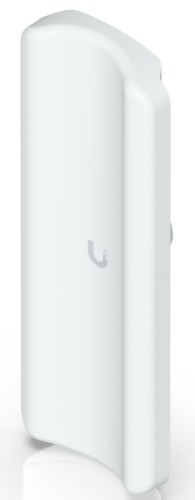

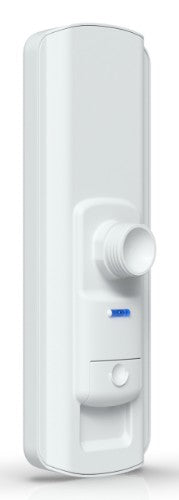

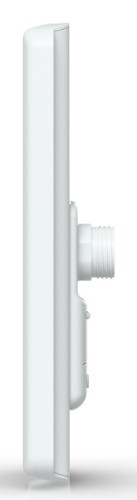

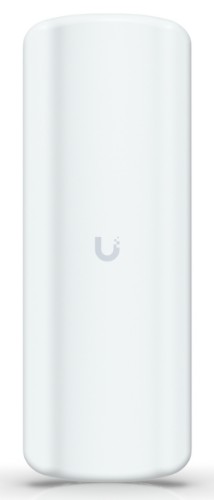

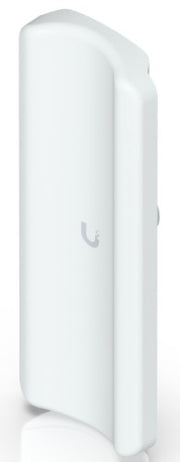

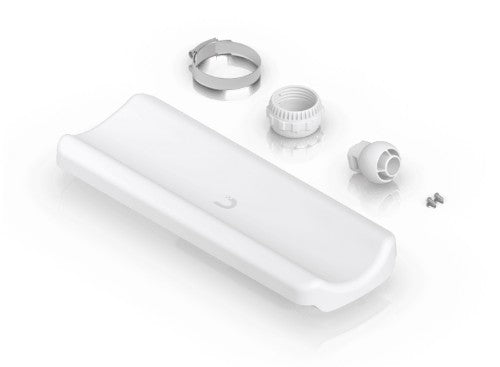

Ubiquiti Device Bridge Pro Sector Network bridge 400 Mbit/s White

Ubiquiti

Ubiquiti Device Bridge Pro Sector Network bridge 400 Mbit/s White

Read reviews
SKU: UDB-PRO-SECTOR
Your price $468.47
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Pole mounting, 5 GHz, Ethernet, Wi-Fi 5, 5 km coverage area

Description

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Specifications

Data transmission
Maximum data transfer rate 400 Mbit/s
Maximum transfer distance 5000 m
Antenna
Antenna gain level (max) 17 dBi
Antenna design Internal
Antenna type 2x2
Wireless LAN features
Signal strength 25 dBm
Antenna gain level (max) 17 dBi
Wi-Fi Yes
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Antenna type 2x2
Network
Ethernet LAN Yes
Ethernet LAN data rates 1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Ports & interfaces
Ethernet LAN Yes
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 1
Security
Security algorithms WPA2-AES
Features
Product type Network bridge
Reset button Yes
International Protection (IP) code IPX6
Material Polycarbonate (PC)
LED indicators LAN, Power
Product colour White
Mounting type Pole
Power
Power consumption (max) 6 W
Power source type PoE
DC input voltage 42.5 - 57 V
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 140 °F
Management features
LED indicators LAN, Power
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Technical details
Operating temperature (T-T) -40 - 140 °F
Material Polycarbonate (PC)
Product colour White
Quantity per pack 1 pc(s)
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Weight 782 g
Width 129.6 mm
Depth 71.4 mm
Height 360.9 mm
Packaging content
Manual Yes
Packaging data
Quantity per pack 1 pc(s)
Brand
Ubiquiti
SKU
UDB-PRO-SECTOR
