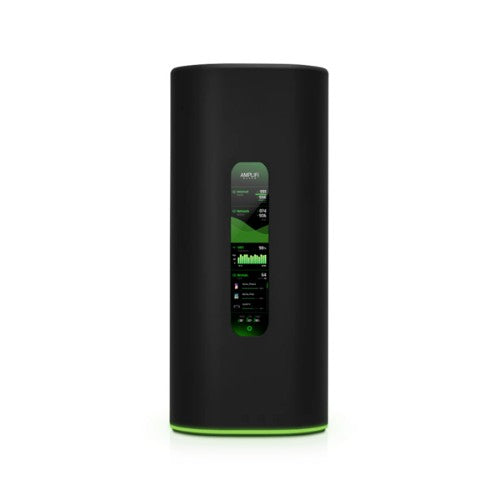

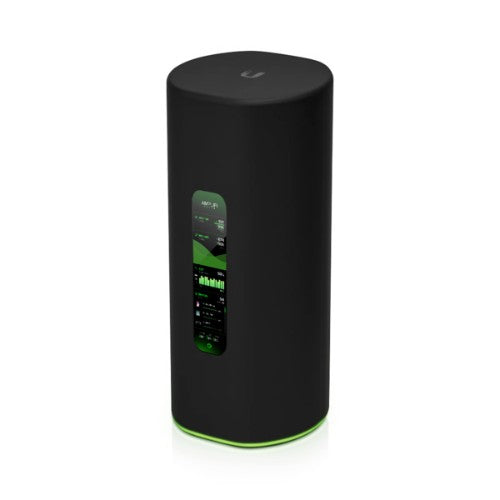

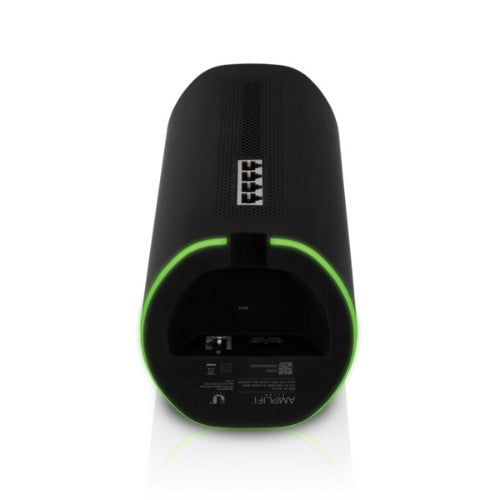

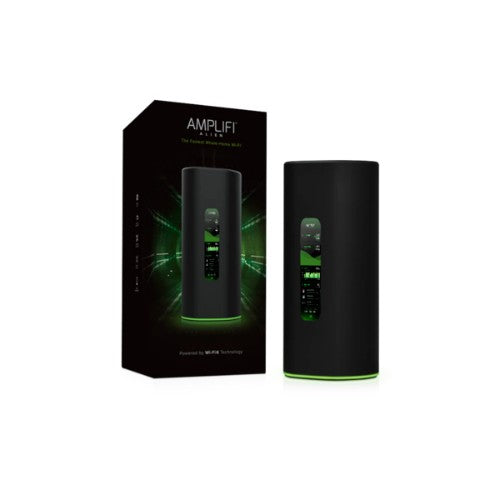

AmpliFi Alien wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Green

Quad-Core Cortex A53 2 Ghz, 1 x 10/100/1000 Mbps RJ45 Ethernet WAN, 4 x 10/100/1000 Mbps RJ45 Ethernet LAN, 2.4/5 GHz

Key Features

• Wi-Fi 6 performance
• 5 GHz 8x8 Wi-Fi 6 radio (Max speed 4804 Mbps)
• 2.4 GHz 4x4 Wi-Fi 6 radio (Max speed 1148 Mbps)
• 4-Port Gigabit Ethernet switch
• Touchscreen display
• Includes AmpliFi Teleport configuration-free VPN solution

Description

With the latest 802.11ax Wi-Fi 6 technology, AmpliFi Alien delivers 4x the overall network capacity and 2x the coverage while reaching true gigabit speeds.
It features a dual-band radio with 2.4 GHz and 5 GHz 802.11ax radios optimized for Wi-Fi 6 performance and backwards compatibility with previous Wi-Fi standards.
AmpliFi Alien can be used as a stand-alone router, or you can add an unlimited number of AmpliFi Alien Routers for use as MeshPoints to expand range coverage.

Tri-Band Wi–Fi 6 Router.
Polished Performance.
Elegantly designed AmpliFi Alien brings revolutionary Wi-Fi 6 benefits to your home. Increase your network capacity by 4x and boost coverage by 2x, while reducing battery drain in mobile devices.

AmpliFi Alien comes with 2.4/5 GHz Wi-Fi 6 and 5 GHz Wi-Fi 5 radios. They deliver 7685 Mbps total capacity and 16 spatial streams from a single AmpliFi Alien unit.

Easily mesh multiple units over the air to build virtually unlimited Wi-Fi capacity in your home.

Flexible Interfaces
AmpliFi Alien is a powerful and secure router with a single Gigabit internet interface and internal power supply.

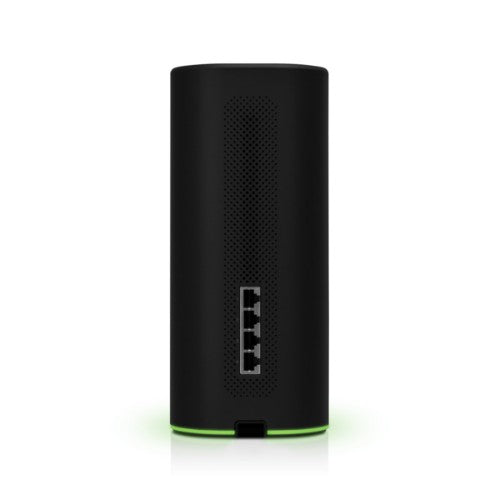

Each Alien router has an integrated LAN switch with 4 Gigabit Ethernet ports.

Bring Gigabit Ethernet into any room without pulling wires. Use Wi-Fi 6 for wireless connectivity and the LAN ports for local wired connectivity.

Performance
AmpliFi Alien is optimized to provide your home network with the highest possible performance regardless of how many client devices are connected simultaneously. Utilizing MU-MIMO and OFDMA for communication across twelve Wi-Fi 6 spatial streams, Alien eliminates dead spots and increases total home network capacity by four times. Alien also offers a separate 5 GHz radio with Wi-Fi 5 (802.11ac) speeds which you can dedicate to performance-critical devices and avoid competing for bandwidth with other devices on your home network.

AmpliFi App.
Simple Setup, Rich Controls.
Set up your AmpliFi network in a minute with the included AmpliFi app.

User-friendly, yet feature-rich controls and statistics let you configure the AmpliFi Alien for your environment.

Scalable Mesh
Wi-Fi Technology
Simple and powerful Wi-FI 6 standard Mesh system that easily covers any home providing simultaneous 4K/8K UHD streaming and online gaming to multiple clients from any room.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Network
Guest access	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Performance
Processor frequency	2000 MHz
Processor cores	4
Built-in processor	Yes
Internal memory	1024 MB
Memory card slot(s)	No
WAN connection
Ethernet WAN	Yes
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	4800 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4800 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Mobile network
5G	No
3G	No
4G	No
Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	4
Memory card slot(s)	No
Management features
MU-MIMO technology	Yes
Security
Security algorithms	WPA2
Guest access	Yes
Design
Product type	Tabletop router
Product colour	Black, Green
Indication light	Yes
Other features
Internal memory	1024 MB
Antenna
Antenna design	Internal
Antennas quantity	2
Antenna gain level (max)	6 dBi
Features
Processor frequency	2000 MHz
Processor cores	4
Built-in processor	Yes
Internal memory	1024 MB
Harmonized System (HS) code	85176990
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	110 mm
Weight	1.2 kg
Height	250 mm
Depth	110 mm
Logistics data
Harmonized System (HS) code	85176990
