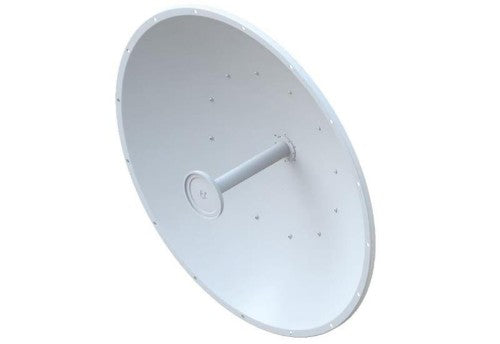

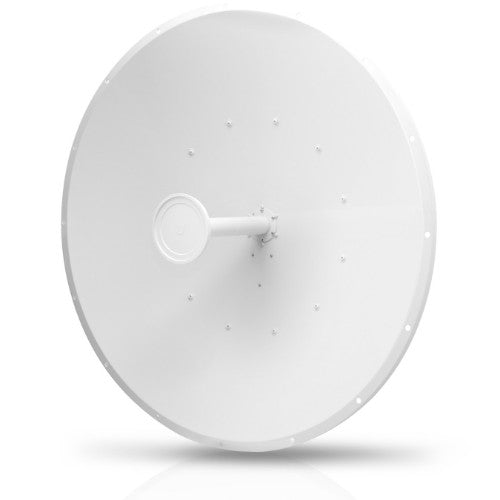

Ubiquiti AF-5G34-S45 network antenna 34 dBi
SAVE 22%

Ubiquiti

Ubiquiti AF-5G34-S45 network antenna 34 dBi

Read reviews
SKU: AF-5G34-S45
Your price $586.89
List price $755.59 Save $168.70
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

5 GHz, 34 dBi, Ø 1050 mm, 13.5kg, White

Description

Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

Plug and Play Integration
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

airFiber X Conversion Kit
The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts
the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

Specifications

Performance
Antenna gain level (max) 34 dBi
Frequency band 5.1 - 5.8 GHz
Vertical beam width (5 GHz) 3°
Horizontal beam width (5 GHz) 3°
Features
Survival wind speed 200 km/h
Front to back ratio 42 dB
Isolation 34 dB
Antenna gain level (max) 34 dBi
Frequency band 5.1 - 5.8 GHz
Voltage Standing Wave Ratio (VSWR) 1.4:1
Vertical beam width (5 GHz) 3°
Polarization Dual polarization
Horizontal beam width (5 GHz) 3°
Compatible products AF-5X
Product colour White
Technical details
Harmonized System (HS) code 85177100
Weight & dimensions
Weight 13.5 kg
Width 1050 mm
Depth 421 mm
Height 1050 mm
Diameter 105 cm
Packaging content
Quick installation guide Yes
Quantity per pack 1 pc(s)
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85177100
Brand
Ubiquiti
SKU
AF-5G34-S45
