TP-Link VIGI NVR1104H-4P White

VIGI 4 Channel PoE+ Network Video Recorder

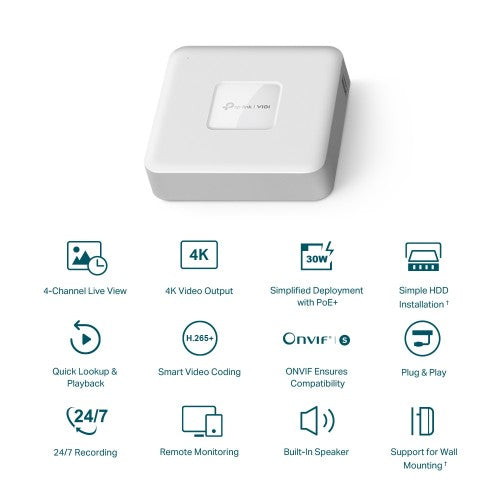

Key Features

• 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle‡

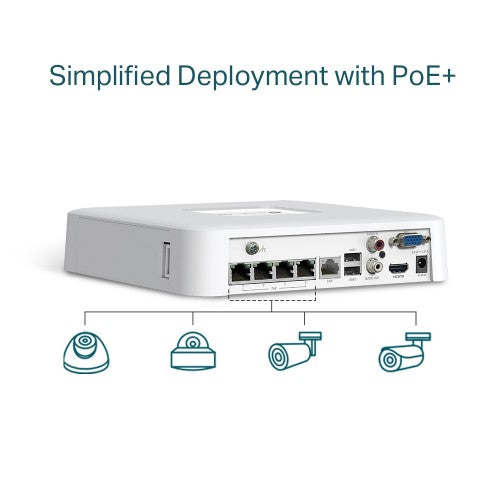

• Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
• Simple HDD Installation†: Install and remove the HDD manually with easy side access
• 4-Channel Simultaneous Playback△ : Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
• ONVIF Ensures Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience
• Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience
• Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk

Description

Every angle all on one screen

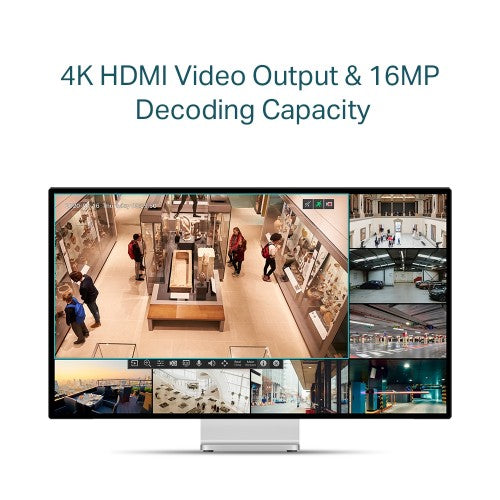

4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.

Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment.

Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing footage is faster than ever

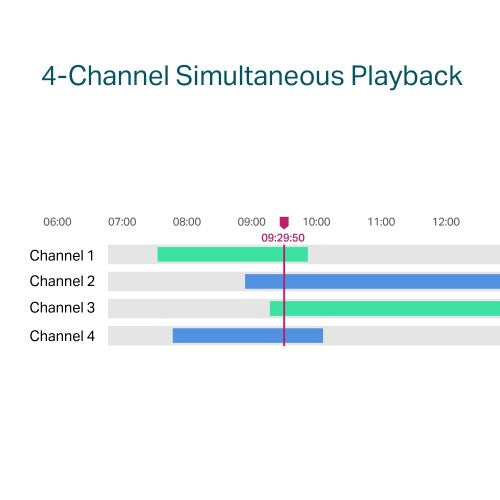

4-Channel Simultaneous Playback

Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

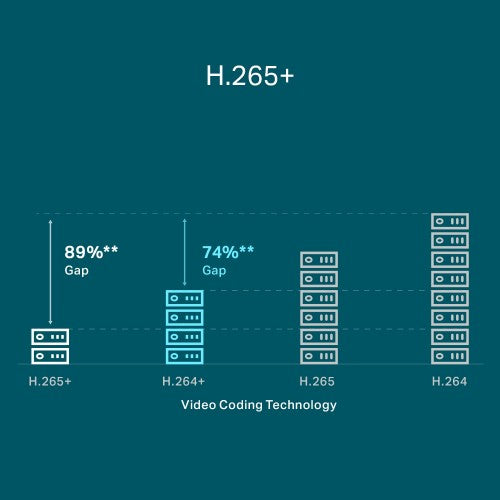

More compression. More savings. Same quality

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Specifications

Performance
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Syslog	Yes
DHCP client	Yes
Ethernet LAN data rates	10,100 Mbit/s
Supported resolutions	HDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
On Screen Display (OSD)	Yes
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Video input channels	4 channels
Maximum resolution	3840 x 2160 pixels
Video formats supported	H.264, H.264+, H.265, H.265+
Supported network protocols	TCP/IP, DHCP, DNS, NTP, UPnP
Number of simultaneously playbacked channels	4 channels
Video recording modes	720p, 1080p
Output bandwidth	60 Mbit/s
Input bandwidth	80 Mbit/s
Wireless LAN features
Wi-Fi	No
Hard drive
Number of HDDs installed	0
Number of HDDs supported	1
Maximum storage capacity	10 TB
HDD interface	SATA
Storage
Number of HDDs installed	0
Number of HDDs supported	1
Maximum storage capacity	10 TB
HDD interface	SATA

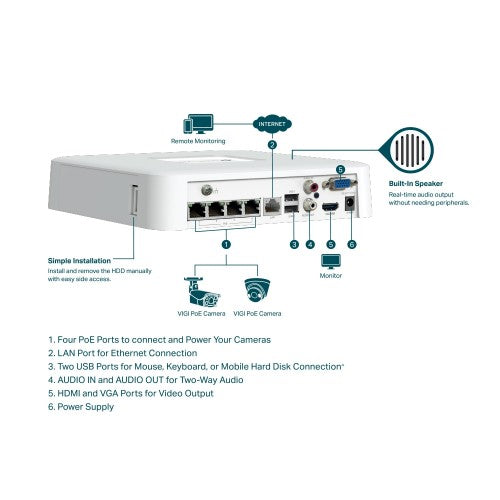

Ports & interfaces
Line-in	Yes
Audio output	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100 Mbit/s
Power over Ethernet (PoE) ports quantity	4
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE)	Yes
VGA (D-Sub) output ports	1
HDMI output	Yes
USB 2.0 ports quantity	2
Supported network protocols	TCP/IP, DHCP, DNS, NTP, UPnP
Ethernet WAN	Yes
Features
Product colour	White
Rack mounting	No
LED indicators	Yes
Display
Built-in display	No
Power
Output voltage	53.5 V
Output current	1.31 A
Total Power over Ethernet (PoE) budget	53 W
Redundant power supply (RPS) support	Yes
Power consumption (typical)	4.82 W
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, EAC, Federal Communications Commission (FCC)
Weight & dimensions
Width	200.3 mm
Depth	200.3 mm
Height	43 mm
Package width	251.5 mm
Package depth	401.5 mm
Package height	64.5 mm
Package weight	1.37 kg
Packaging content
Quick installation guide	Yes
AC adapter included	Yes
