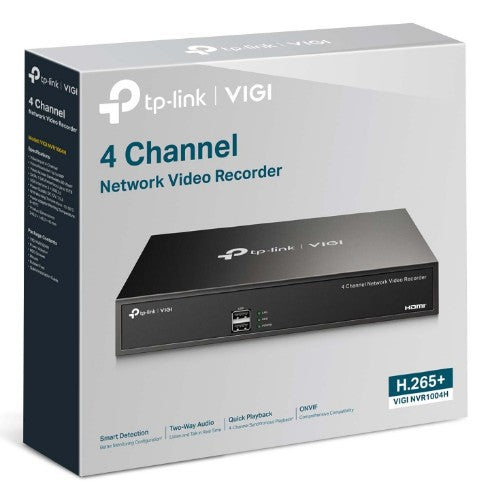

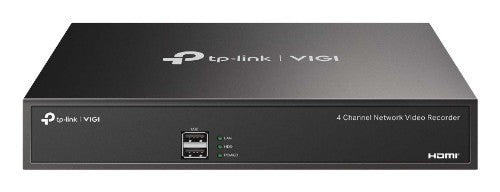

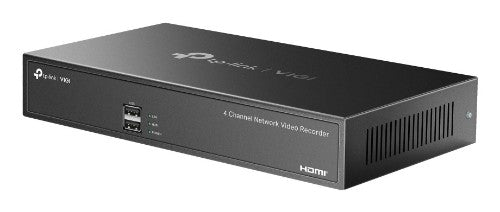

TP-Link VIGI NVR1004H Black

TP-LINK

TP-Link VIGI NVR1004H Black

Read reviews
SKU: VIGI NVR1004H
Your price $164.51
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

VIGI 4 Channel Network Video Recorder

Key Features

  • 4-Channel Live View and 4K HDMI Video Output
  • Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
  • 4-Channel Synchronous Playback†
  • 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
  • 1 SATA Interface (up to 10 TB) *
  • H.265+ Compression Technology
  • HDMI and VGA Simultaneous Output
  • Remote Monitoring

Description

Security Never Shuts Down

VIGI NVR1004H 4 Channel Network Video Recorder

Auto Initialize for Quick Configuration

Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.

Specifications

Performance
Recording modes Manual, Schedule
Maximum frame rate 30 fps
Supported resolutions 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Video motion detection Yes
Video input channels 4 channels
Maximum resolution 3840 x 2160 pixels
Resolution at capture speed 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Video formats supported H.264, H.264+, H.265, H.265+
Supported network protocols UPnP (Plug and Play), NTP (Network Timing)
Backup function Yes
Audio formats supported G.711u, G.726
Video recording modes 720p, 1080p, 2160p
Output bandwidth 60 Mbit/s
Input bandwidth 80 Mbit/s
Wireless LAN features
Wi-Fi No
Hard drive
Number of HDDs installed 0
HDD capacity 0 GB
Maximum storage capacity 10 TB
HDD interface SATA
Storage
Number of HDDs installed 0
HDD capacity 0 GB
Maximum storage capacity 10 TB
HDD interface SATA

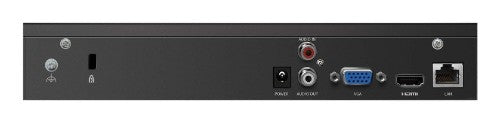

Ports & interfaces
Audio RCA outputs 1
Power over Ethernet (PoE) ports quantity 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) output ports 1
HDMI output Yes
USB 2.0 ports quantity 2
Supported network protocols UPnP (Plug and Play), NTP (Network Timing)
Audio RCA inputs 1
DC-in jack Yes
Storage relative humidity (H-H) 10 - 90%
Features
Reset button Yes
Product colour Black
LED indicators Yes
Power
Power consumption (typical) 4.25 W
System requirements
Mobile operating systems supported Android, iOS
Browser supported Chrome (57+), Firefox (52+), Edge (91+)
Operational conditions
Operating temperature (T-T) -10 - 55 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 246.2 mm
Depth 148.2 mm
Height 45 mm
Weight 590 g
Package weight 950 g
Packaging content
Quick installation guide Yes
AC adapter included Yes
Brand
TP-LINK
SKU
VIGI NVR1004H
