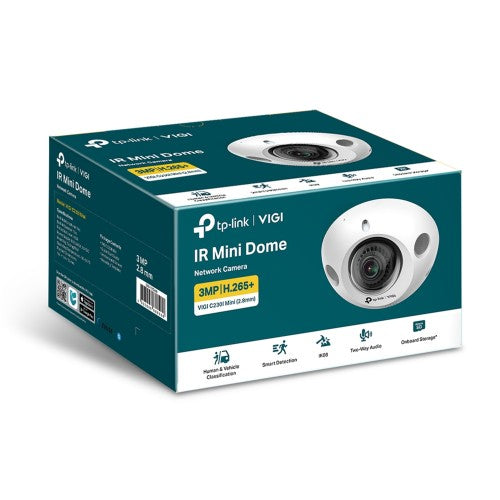

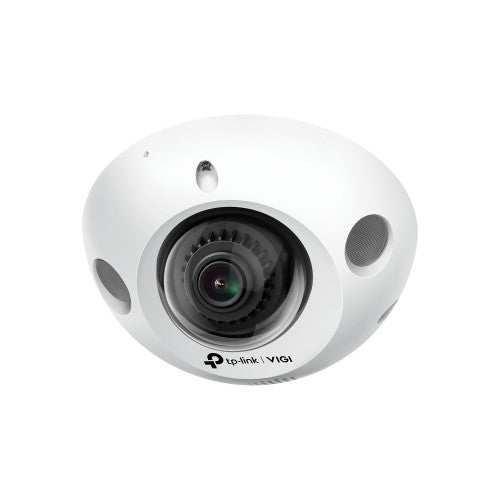

TP-Link VIGI C230I MINI(2.8MM) security camera Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling

3MP IR Mini Dome Network Camera

Description

Looking for a higher resolution? It's right here.
3MP Super-High Definition
The VIGI C230I Mini Camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Small but compact with wide views
With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini Camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

IK08 Vandal-Proof
Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Corridor Mode
Corridor mode allows you to change the image aspect ratio from 16:9 to 9:16. This helps to monitor long and narrow areas and provides a more pleasant viewing experience.

No need to check long compatibility lists.
Onvif Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility △ .

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each methods, as well as onboard storage with SD card slot (up to 256 GB).

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Day/night mode	Yes
Certification	CE/VCCI/BSMI/KC/ONVIF
Design
IK code	IK08
Form factor	Dome
Product colour	White
Mounting type	Ceiling
Housing material	Plastic
Camera
Lens viewing angle, horizontal	106.9°
Lens viewing angle, vertical	56.9°
Lens viewing angle, diagonal	127.9°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Lens system
Fixed focal length	2.8 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Maximum resolution	2304 x 1296 pixels
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296
Video compression formats	H.264, H.264+, H.265, H.265+
Total megapixels	3 MP
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Management features
Reset button	Yes
Power
Power source type	DC, PoE
Power consumption (max)	7.5 W
DC output voltage	12
Certificates
Certification	CE/VCCI/BSMI/KC/ONVIF
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Weight & dimensions
Width	114 mm
Depth	58 mm
Height	114 mm
Packaging content
Number of cameras	1
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
